Product CatalogPart Number
3414.0113.26
Manufacturer
SCHURTER Inc.Description
FUSE BOARD MNT 500MA 32VDC 0402
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
50,073 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3414.0113.26
3414.0113.26

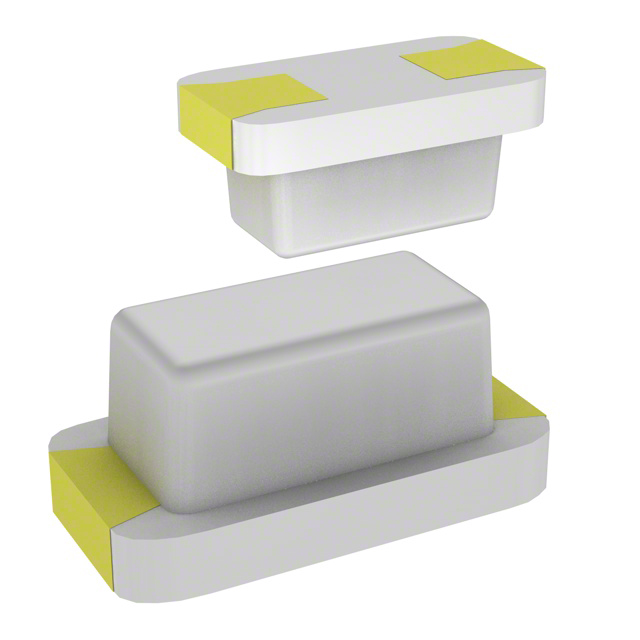

lmages are for reference only.Payment Methods
Delivery Services
500 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0402 (1005 Metric)
Quick Inquiry
3414.0113.26
Specifications
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | USF 0402 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | Fast Blow |
| Package / Case | 0402 (1005 Metric) |
| Breaking Capacity @ Rated Voltage | 35A |
| Melting I²t | 0.004 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.040" L x 0.020" W x 0.019" H (1.00mm x 0.50mm x 0.48mm) |
| Base Product Number | 3414.0113 |
| DC Cold Resistance | 0.124 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3414.0113.22 | 3414.0112.22 | 3414.0112.26 | 3414.0114.26 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOARD MNT 500MA 32VDC 0402 | FUSE BOARD MNT 375MA 32VDC 0402 | FUSE BOARD MNT 375MA 32VDC 0402 | FUSE BOARD MNT 750MA 32VDC 0402 |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
