350-10-132-00-001000

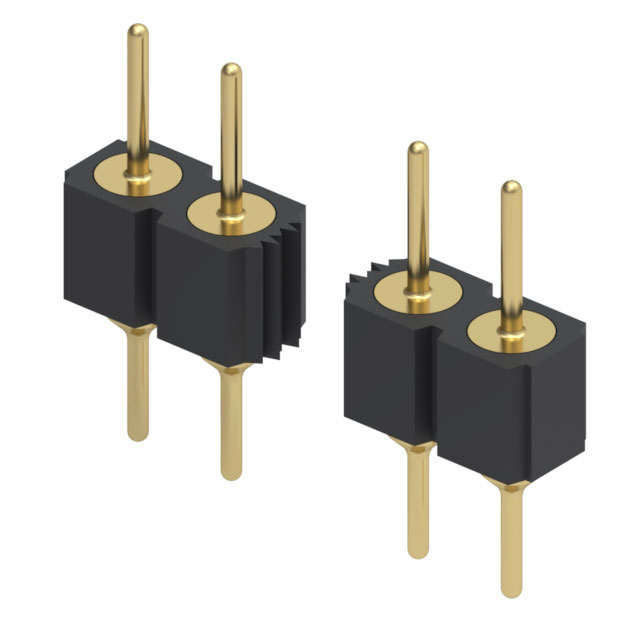

lmages are for reference only.350-10-132-00-001000
CONN HEADER VERT 32POS 2.54MM
Datasheet-
72,129 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 32 position 0.100" (2.54mm)
350-10-132-00-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 350 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 32 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.166" (4.22mm) |
| Contact Length - Post | 0.157" (4.00mm) |
| Overall Contact Length | 0.477" (12.12mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Applications | - |
| Base Product Number | 350-10 |
| Product Attribute | |
 |
 |
|
| Part Number | 350-10-132-00-001000 | 350-10-132-00-001101 | 350-10-132-00-006000 | 350-10-132-00-006000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Preci-Dip | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 32POS 2.54MM | CONN HEADER VERT 32POS 2.54MM | CONN HEADER VERT 32POS 2.54MM | CONN HEADER VERT 32POS 2.54MM |
| Series | 350 | 350 | 350 | 350 |
| Packaging | Tube | Bulk | Tube | Tube |
