Product CatalogPart Number
3521-24-0200-99
Manufacturer
CNC TechDescription
CONN RCPT 24POS 0.1 TIN PCB R/A
Datasheet
DatasheetPackage
-
In Stock
20,273 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3521-24-0200-99
3521-24-0200-99
lmages are for reference only.Payment Methods
Delivery Services
24 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Quick Inquiry
3521-24-0200-99
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | CNC Tech |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Red |
| Insulation Height | 0.197" (5.00mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 500V |
| Applications | - |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Contact Shape | - |
| Contact Material | Bronze |
| Contact Finish Thickness - Post | - |
| Base Product Number | 3521 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

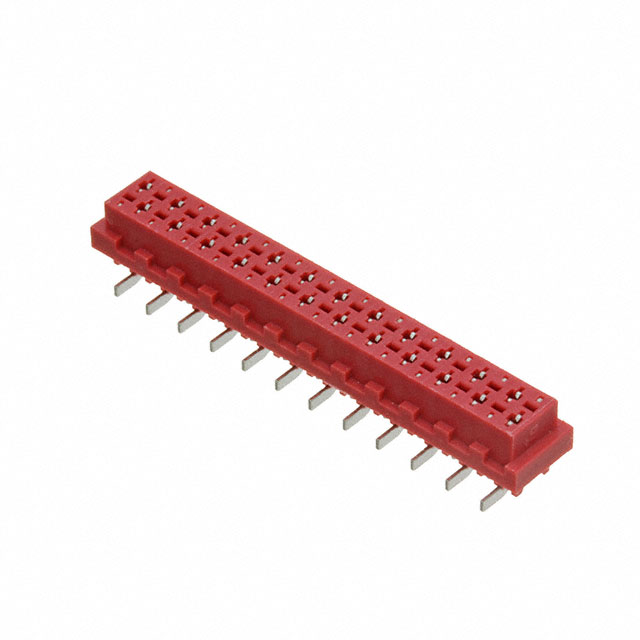

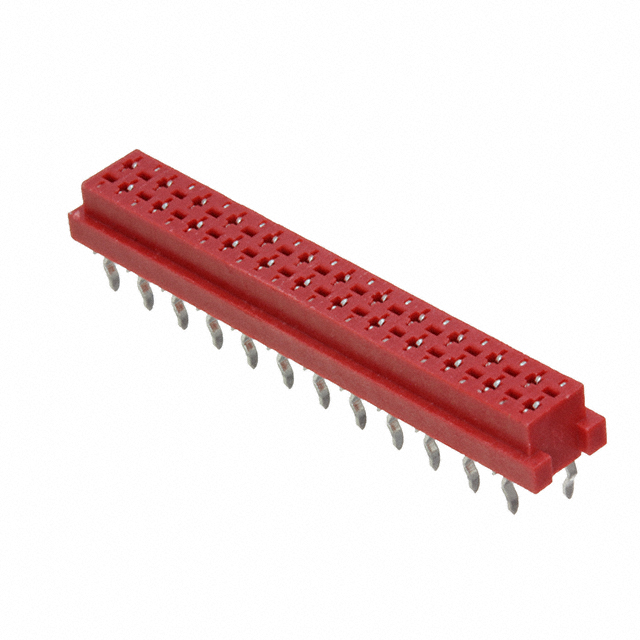

| Part Number | 3521-24-0100-99 | 3521-24-0101-99 | 3521-04-0100-99 | 3521-04-0101-99 |
| Manufacturer | CNC Tech | CNC Tech | CNC Tech | CNC Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT 24POS 0.1 TIN PCB | CONN RCPT 24POS 0.1 TIN SMD | CONN RCPT 4POS 0.1 TIN PCB | CONN RCPT 4POS 0.1 TIN SMD |
| Series | CNC Tech | CNC Tech | CNC Tech | CNC Tech |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

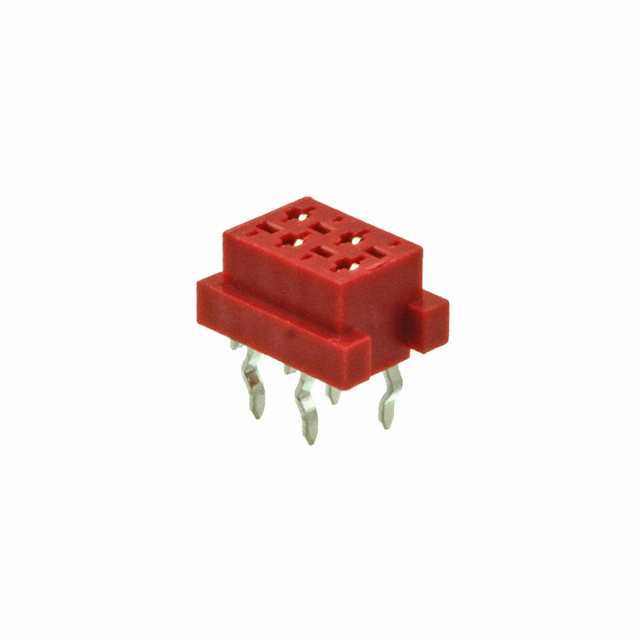

3521-04-0100-99
CNC Tech

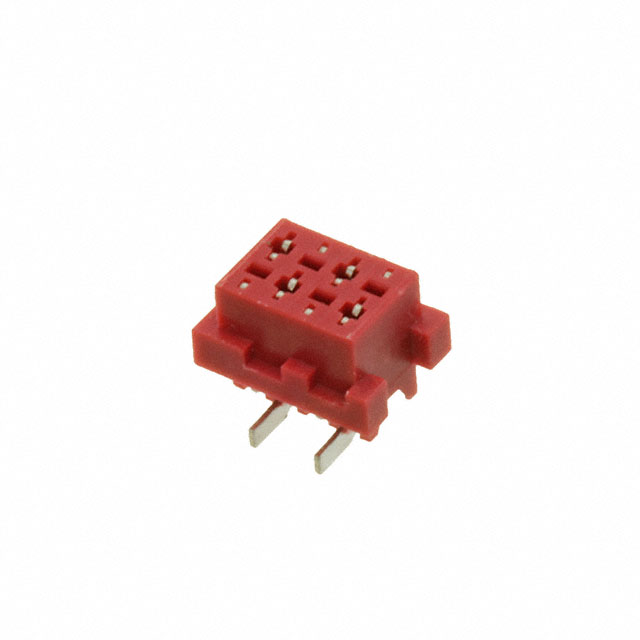

3521-04-0101-99
CNC Tech

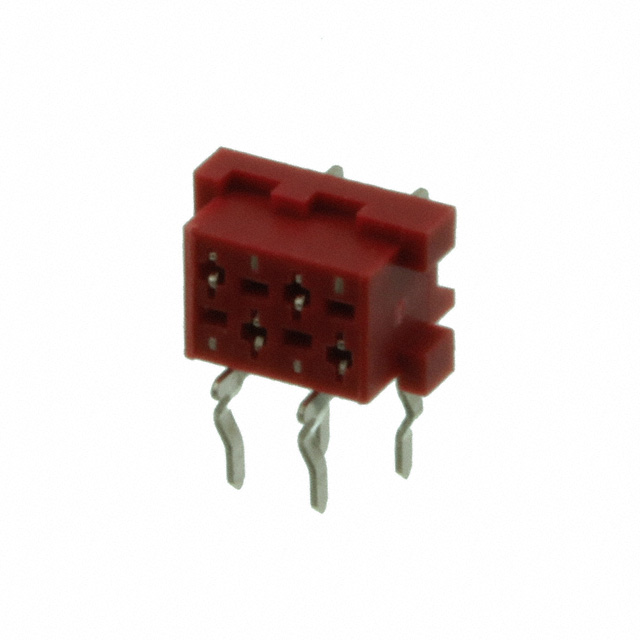

3521-04-0200-99
CNC Tech

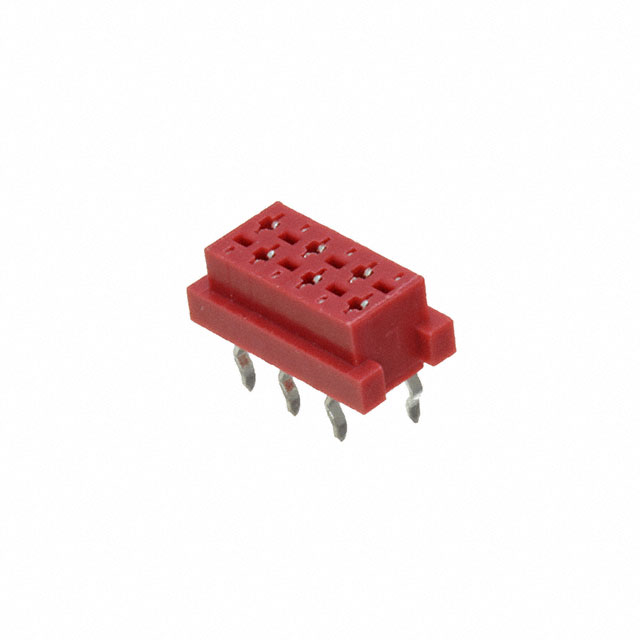

3521-06-0100-99
CNC Tech

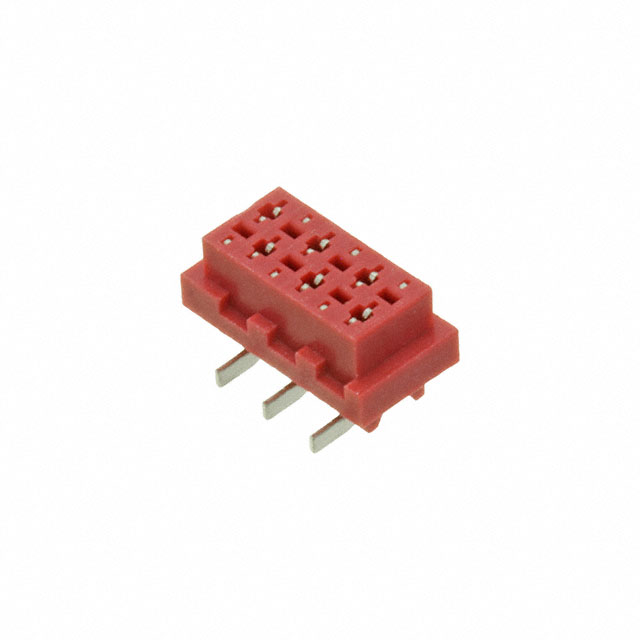

3521-06-0101-99
CNC Tech

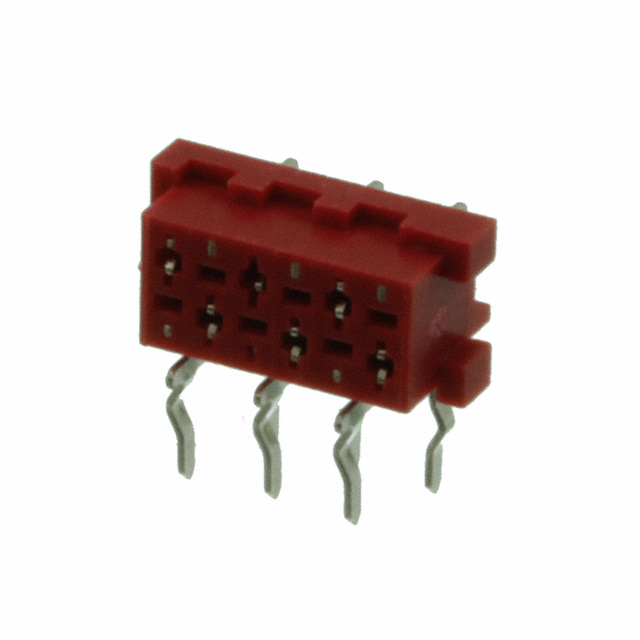

3521-06-0200-99
CNC Tech

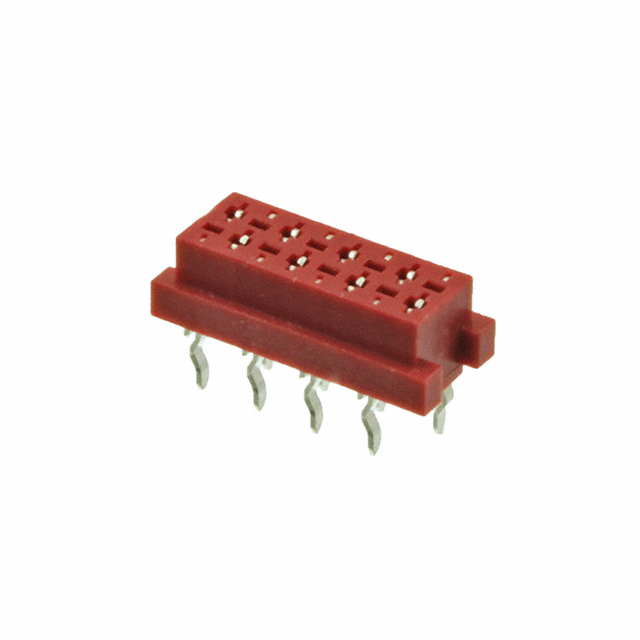

3521-08-0100-99
CNC Tech

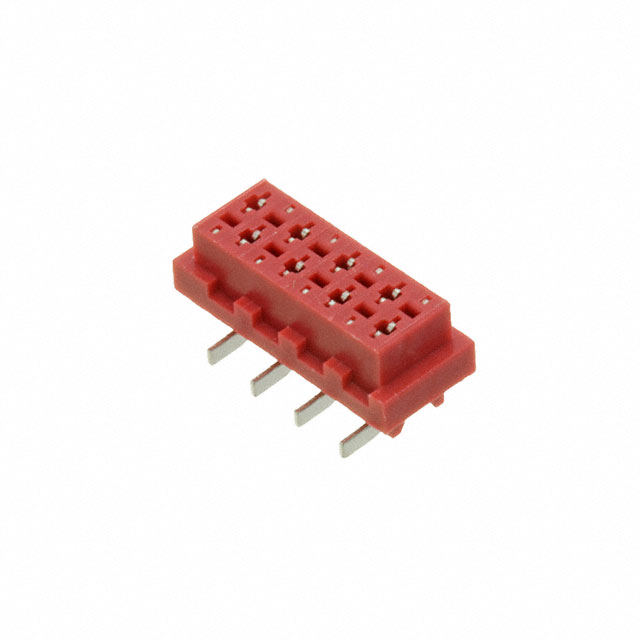

3521-08-0101-99
CNC Tech

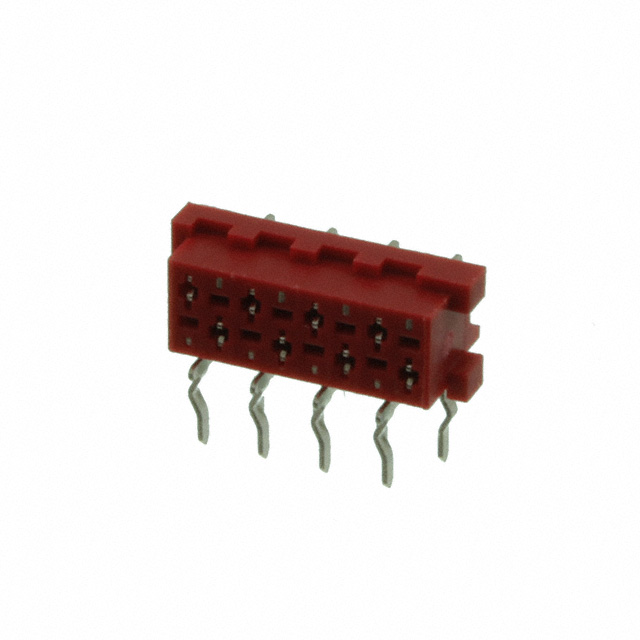

3521-08-0200-99
CNC Tech

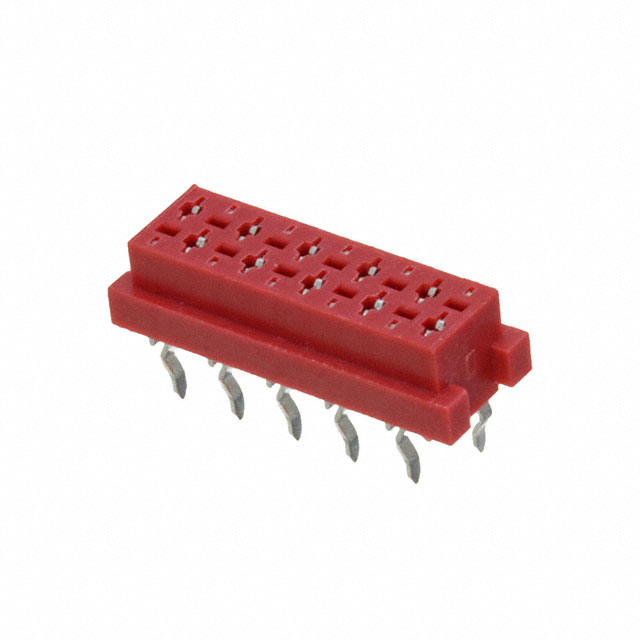

3521-10-0100-99
CNC Tech

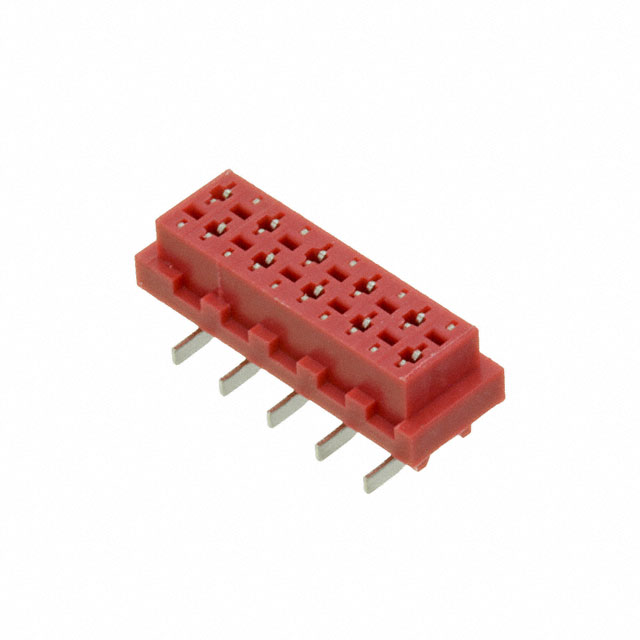

3521-10-0101-99
CNC Tech

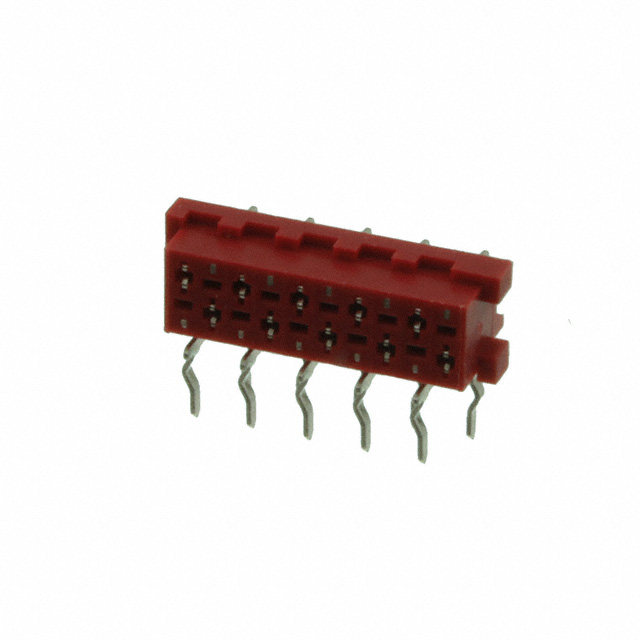

3521-10-0200-99
CNC Tech

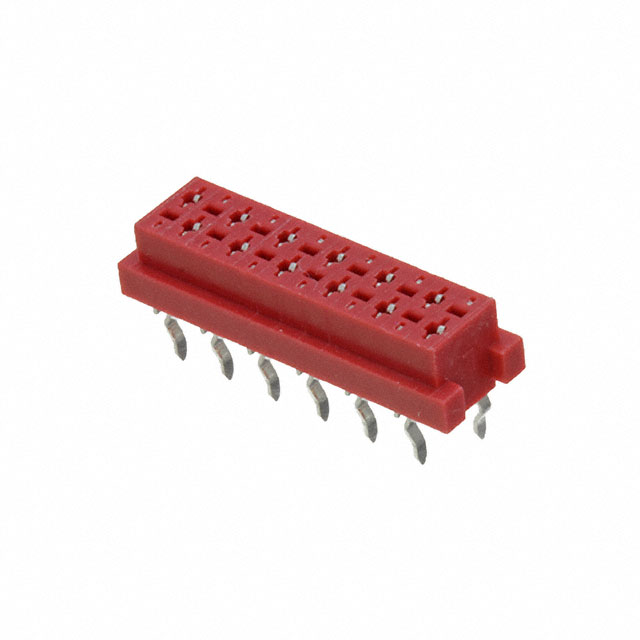

3521-12-0100-99
CNC Tech

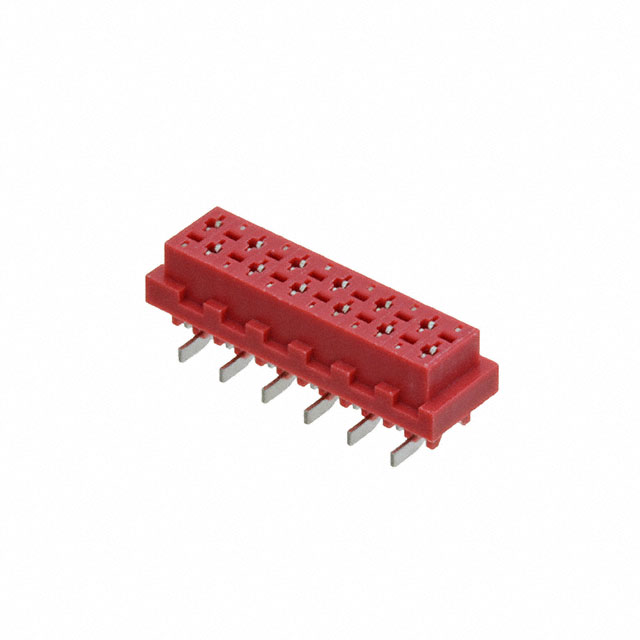

3521-12-0101-99
CNC Tech

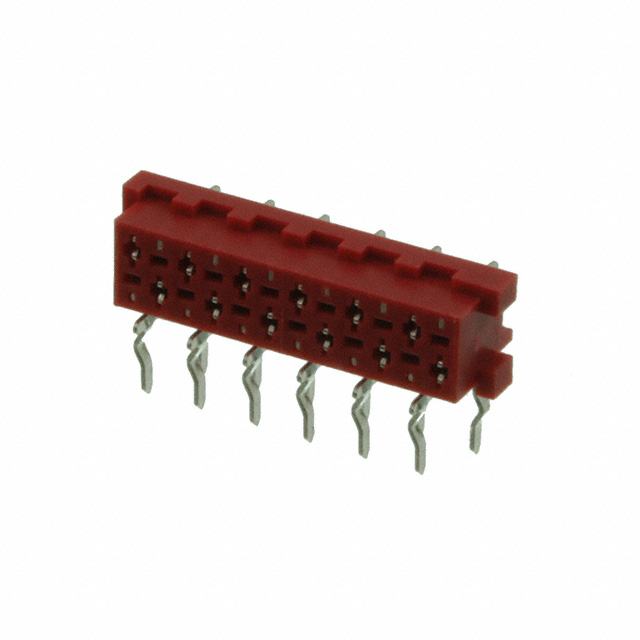

3521-12-0200-99
CNC Tech

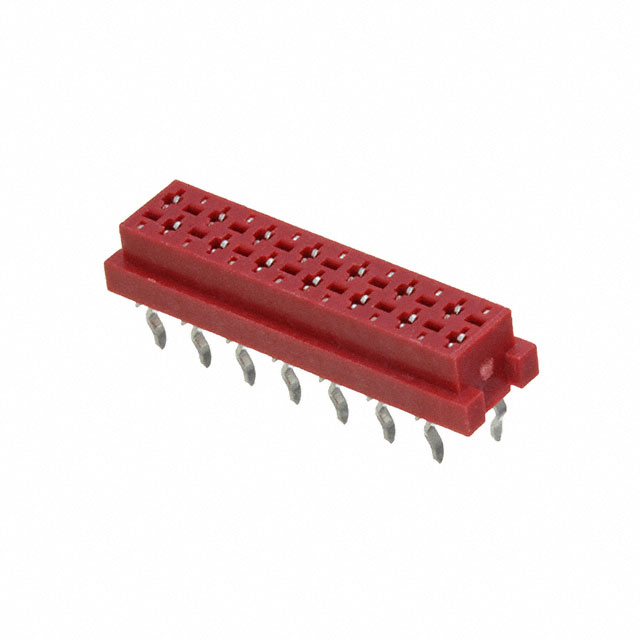

3521-14-0100-99
CNC Tech
3521-14-0101-99
CNC Tech

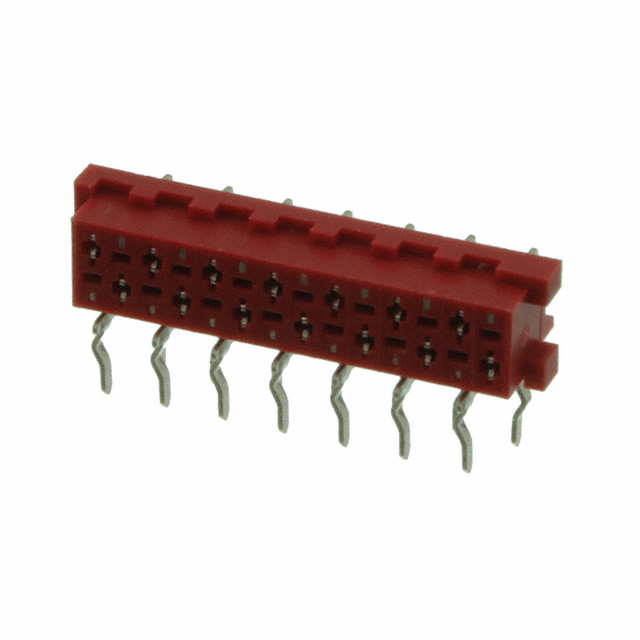

3521-14-0200-99
