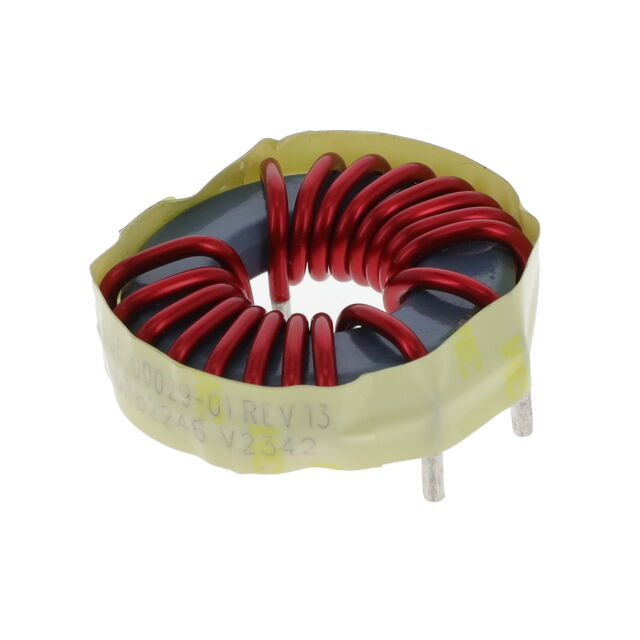

CMC 950UH 10A 2LN TH
DatasheetHorizontal, No Base, 2 PC Pins
75,415 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
950 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 10A DCR 10mOhm
36-00029-04
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Vicor Corporation |
| Series | - |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 950 µH @ 1 kHz |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 10mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.720" Dia (43.69mm) |
| Height (Max) | 0.022" (0.55mm) |
| Package / Case | Horizontal, No Base, 2 PC Pins |
| Base Product Number | 36-00029 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | 36-00029-01 | 36-00029-06 | 36-00029-07 | 36-00037 |
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CMC 350UH 40A 2LN TH | 70 UH, 80A COMMON MODE INDUCTO | 10 UH, 60A COMMON MODE INDUCT | CMC 330UH 20A 2LN SMD |
| Series | - | * | * | - |
| Packaging | Bulk | Tray | Tray | Bulk |
