Product CatalogPart Number
3640KA331JAT3A
Manufacturer
KYOCERA AVXDescription
CAP CER 330PF 5KV C0G/NP0 3640
Datasheet
DatasheetPackage
3640 (9110 Metric)
In Stock
56,967 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3640KA331JAT3A
3640KA331JAT3A
lmages are for reference only.Payment Methods
Delivery Services
330 pF ±5% 5000V (5kV) Ceramic Capacitor C0G, NP0 3640 (9110 Metric)
Quick Inquiry
3640KA331JAT3A
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 330 pF |
| Tolerance | ±5% |
| Voltage - Rated | 5000V (5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 3640 (9110 Metric) |
| Size / Dimension | 0.360" L x 0.402" W (9.14mm x 10.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.100" (2.54mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3640KA330KAT3A | 3640AA103KAT3A | 3640AA183KAT3A | 3640AC104KAT6A |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 33PF 5KV NP0 3640 | CAP CER 10000PF 1KV C0G/NP0 3640 | CAP CER 0.018UF 1KV NP0 3640 | CAP CER 0.1UF 1KV X7R 3640 |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
Customers Also Interested in
Recommended Products
3640KA101JAT3A
KYOCERA AVX
3640KA101KAT3A
KYOCERA AVX
3640KA120KAT3A
KYOCERA AVX
3640KA180KAT3A
KYOCERA AVX
3640KA200KAT3A
KYOCERA AVX
3640KA220KAT3A
KYOCERA AVX
3640KA221JAT3A
KYOCERA AVX
3640KA221JAT9A
KYOCERA AVX
3640KA221MAT3A
KYOCERA AVX
3640KA270KAT3A
KYOCERA AVX
3640KA311JAT9A
KYOCERA AVX
3640KA330KAT3A
KYOCERA AVX
3640KA390KAT3A
KYOCERA AVX
3640KA470JAT3A
KYOCERA AVX
3640KA470JAT9A
KYOCERA AVX
3640KA470KAT3A
KYOCERA AVX
3640KA471JAT3A
KYOCERA AVX

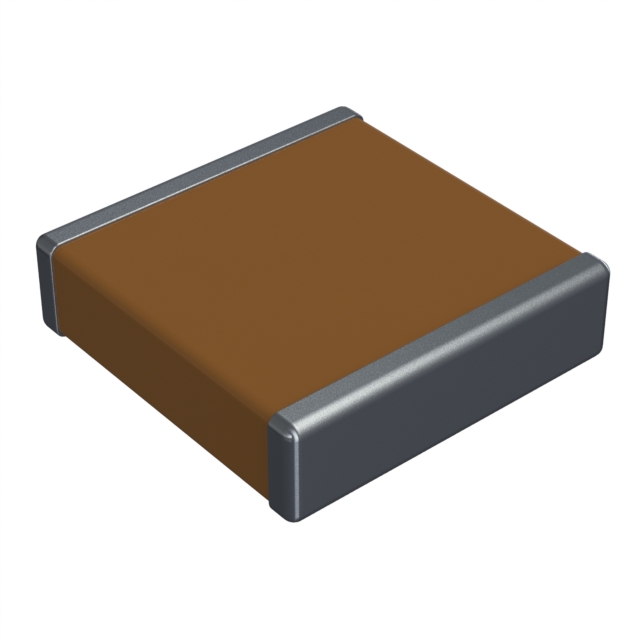

3640KA560JAT3A
