36D372F200DC2A
lmages are for reference only.36D372F200DC2A
CAP ALUM 3700UF 200V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
10,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3700 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 1000 Hrs @ 85°C
36D372F200DC2A
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | 36D |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3700 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.079" Dia (78.20mm) |
| Height - Seated (Max) | 4.252" (108.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
 |

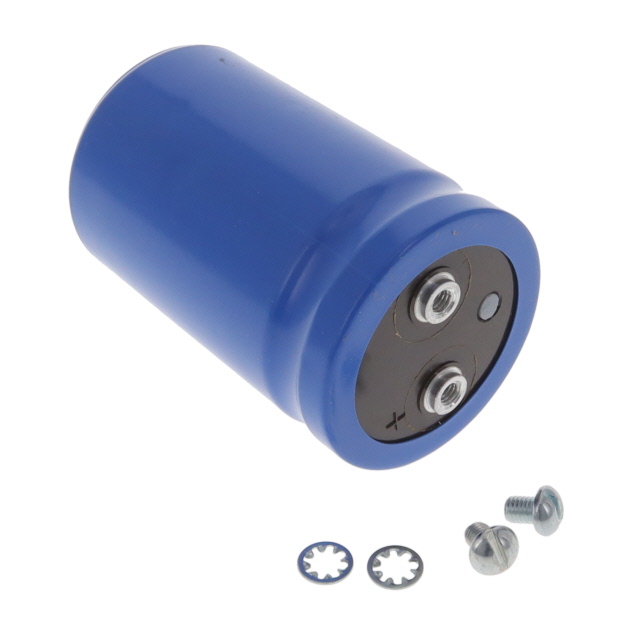

| Part Number | 36D352G100CB2A | 36D362G040AB2A | 36D392G075BB2A | 25YXM100MEFR6.3X11 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 3500UF 100V SCREW CHAS | CAP ALUM 3600UF 40V SCREW CHAS M | CAP ALUM 3900UF 75V SCREW CHAS M | CAP ALUM 100UF 20% 25V RADIAL TH |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
