380LQ103M035J022
lmages are for reference only.380LQ103M035J022
CAP ALUM 10000UF 20% 35V SNAP TH
DatasheetRadial, Can - Snap-In
37,210 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 58mOhm @ 120Hz 2000 Hrs @ 85°C
380LQ103M035J022
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 380LQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 58mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.08 A @ 20 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

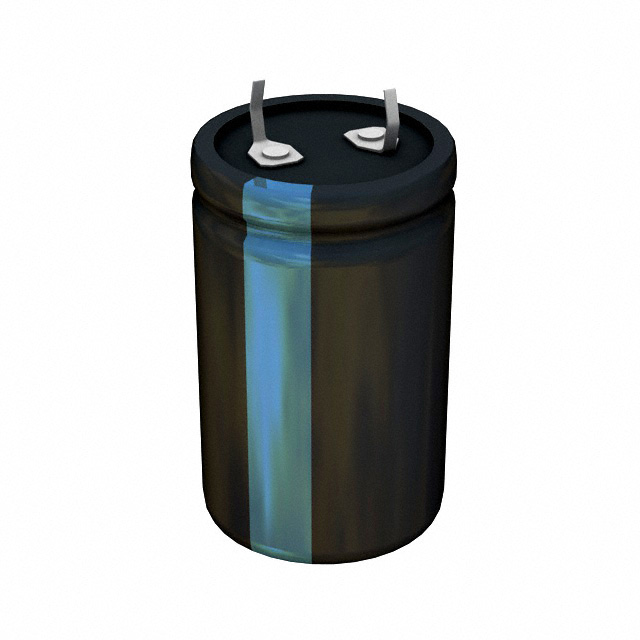

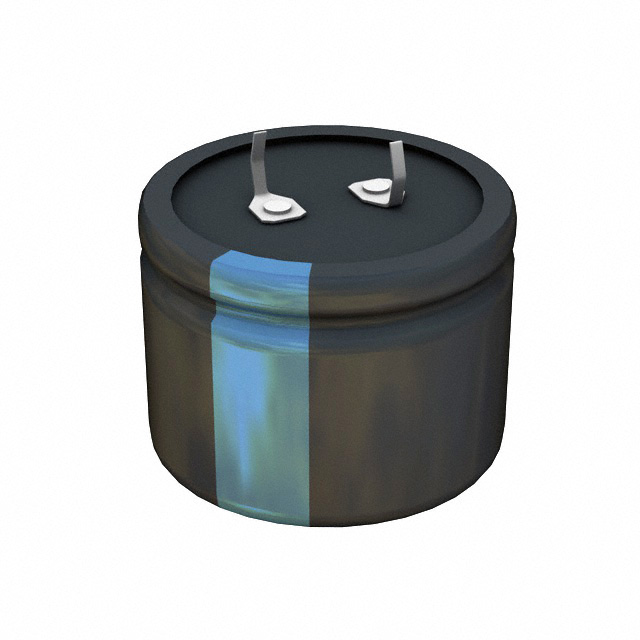

| Part Number | 380LQ103M035J032 | 380LQ103M050A012 | 380LQ103M050J042 | 380LQ103M050J052 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 20% 35V SNAP TH | CAP ALUM 10000UF 20% 50V SNAP TH | CAP ALUM 10000UF 20% 50V SNAP TH | CAP ALUM 10000UF 20% 50V SNAP TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
