380LX681M200K022
lmages are for reference only.380LX681M200K022
CAP ALUM 680UF 20% 200V SNAP TH
DatasheetRadial, Can - Snap-In
29,408 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 270mOhm @ 120Hz 3000 Hrs @ 85°C
380LX681M200K022
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 380LX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 270mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 20 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
 |

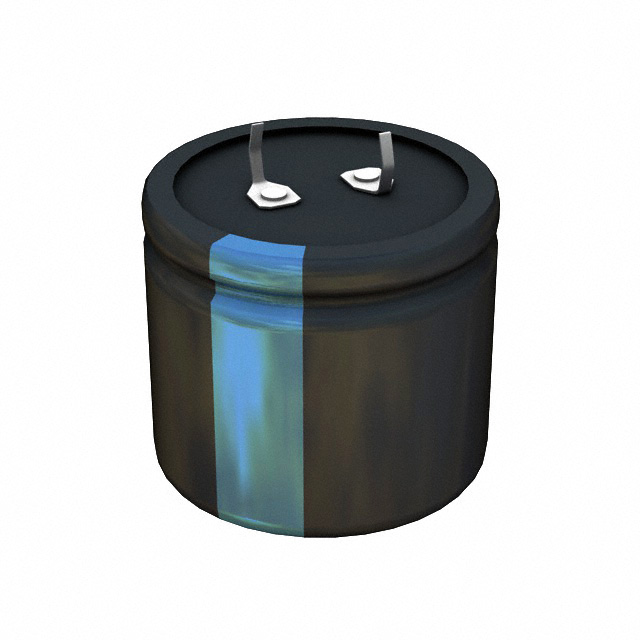

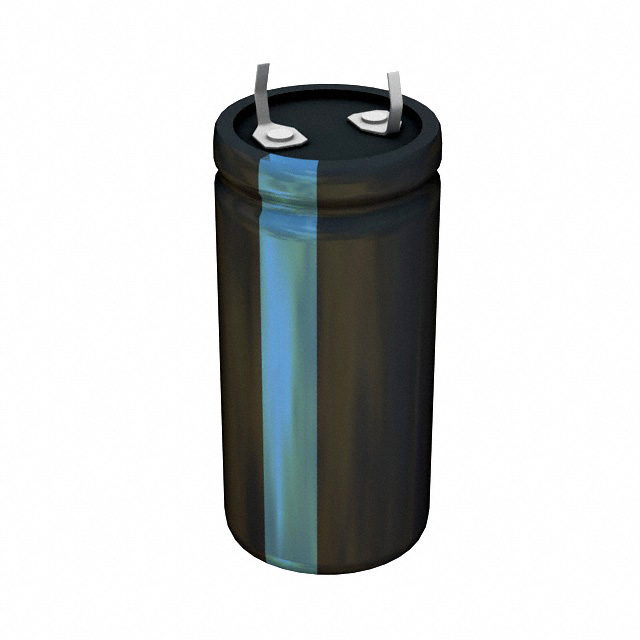

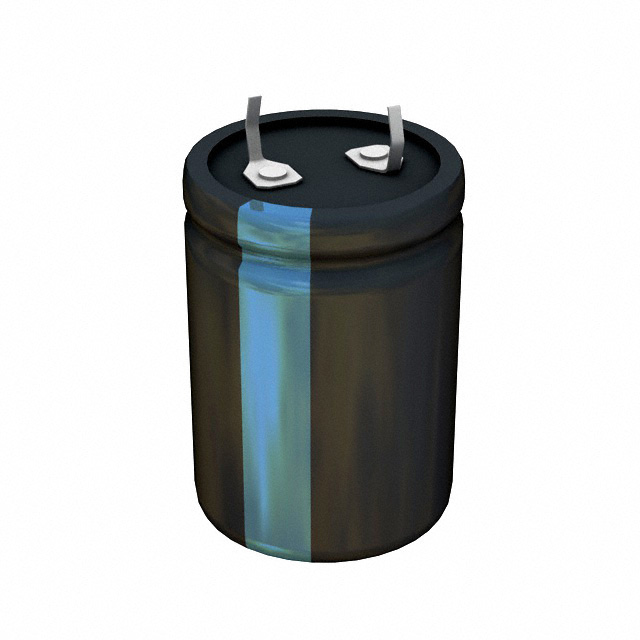

| Part Number | 380LX681M200H452 | 380LX681M200H452 | 380LX681M200J032 | 380LX681M250A022 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 250V SNAP TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
