383LL152M250N052
lmages are for reference only.383LL152M250N052
CAP ALUM 1.5UF 20% 250V SNAP TH
DatasheetRadial, Can - Snap-In - 4 Lead
83,051 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 109mOhm @ 120Hz 8000 Hrs @ 105°C
383LL152M250N052
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 383LL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1.5 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 109mOhm @ 120Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.73 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.22 A @ 20 kHz |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 35ZLH1000MEFC12.5X20 | 383LX222M250N062 | 35SGV22M6.3X6.1 | 380LX472M050H032 |
| Manufacturer | Rubycon | Cornell Dubilier Knowles | Rubycon | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

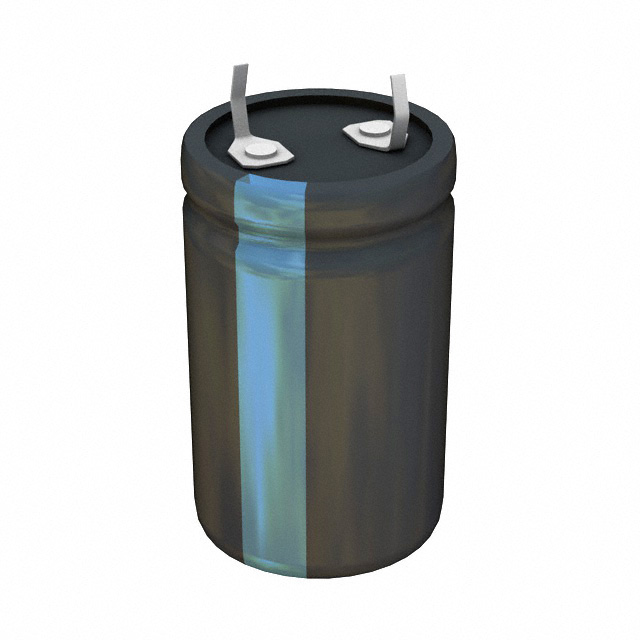

| Description | CAP ALUM 1000UF 20% 35V RADIAL | CAP ALUM 2200UF 20% 250V SNAP TH | CAP ALUM 22UF 20% 35V SMD | CAP ALUM 4700UF 20% 50V SNAP TH |
| Series | Rubycon | Cornell Dubilier Knowles | Rubycon | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
