383LX223M035N042
lmages are for reference only.383LX223M035N042
CAP ALUM 22000UF 20% 35V SNAP TH
DatasheetRadial, Can - Snap-In - 4 Lead
24,196 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 27mOhm @ 120Hz 3000 Hrs @ 105°C
383LX223M035N042
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 383LX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.75 A @ 20 kHz |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

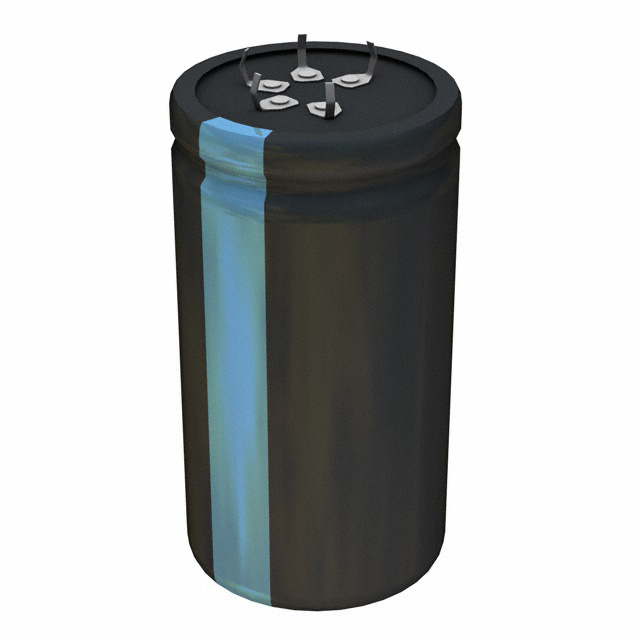

| Part Number | 383LX223M063B052V | 383LX223M080B092VS | 383LX223M080N102 | 383LX222M200A052 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22000UF 20% 63V SNAP TH | CAP ALUM 22000UF 20% 80V SNAP TH | CAP ALUM 22000UF 20% 80V SNAP TH | CAP ALUM 2200UF 20% 200V SNAP TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
