Product CatalogPart Number
389FXCXC1-12D
Manufacturer
Schneider ElectricDescription
POWER RELAY
Datasheet
DatasheetPackage
-
In Stock
11,290 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
389FXCXC1-12D
389FXCXC1-12D

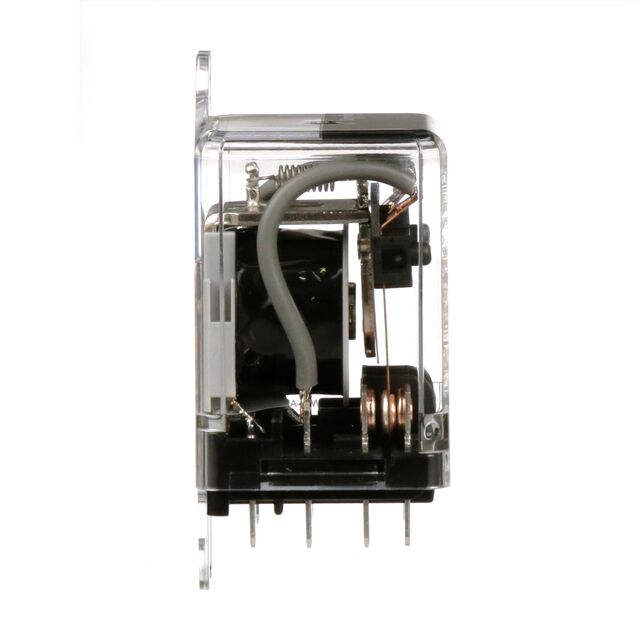

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 12VDC Coil Chassis Mount
Quick Inquiry
389FXCXC1-12D
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | - |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 300VAC, 28VDC - Max |
| Load - Max Switching | - |
| Coil Current | 120 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -30°C ~ 55°C |
| Contact Material | Silver Alloy |
| Approval Agency | CE, CSA, cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 100 Ohms |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | 389FXCXC1-24D | 389FXCXC1120A | 389FXCXC112D | 389FXCXC120A |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | |||
| Description | PWR RELAY, 3PDT, 20A, 24VDC, FLA | PWR RELAY, 3PDT, 20A, 120VAC, FL | PWR RELAY, 3PDT, 20A, 12VDC, FLA | 389F POWER RELAY, 3PDT, 20A, 120 |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
