39H182C

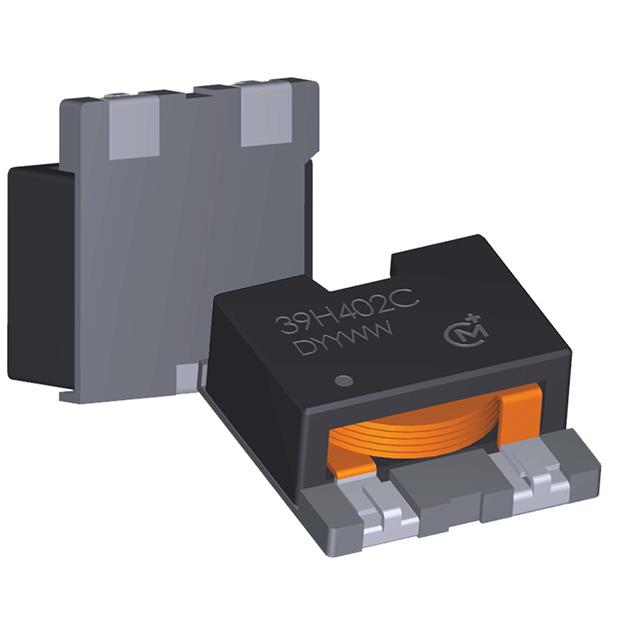

lmages are for reference only.39H182C
FIXED IND 1.8UH 13.5A 3.9MOHM SM
DatasheetNonstandard
87,410 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.8 µH Unshielded Wirewound Inductor 13.5 A 3.9mOhm Max Nonstandard
39H182C
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 3900 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.5 A |
| Current - Saturation (Isat) | 15.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Base Product Number | 39H |
| Product Attribute |  |
|
 |
|
| Part Number | 39H102C | 39H182C | 3483R-101M | 3094R-103JS |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 17.5A 2.5 MOHM SMD | FIXED IND 1.8UH 13.5A 3.9MOHM SM | FIXED IND 100UH 450MA 0.95OHM SM | FIXED IND 10UH 120MA 3.5 OHM SMD |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Delevan | Delevan |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
