3A272

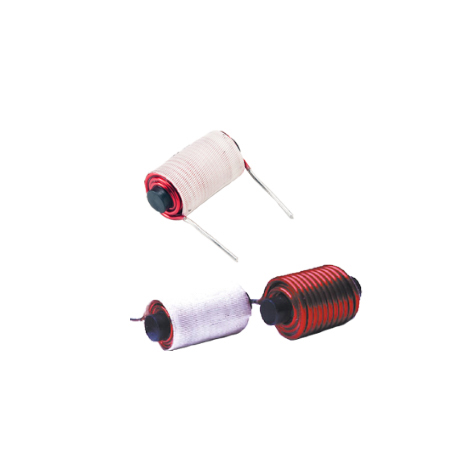

lmages are for reference only.3A272
RADIAL-LEADED HIGH CURRENT CHOKE
DatasheetRadial, Horizontal Cylinder
72,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 µH Unshielded Wirewound Inductor 3 A 35mOhm Radial, Horizontal Cylinder
3A272
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Gowanda Electronics |
| Series | A |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 27 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 35mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.812" Dia x 0.875" L (20.62mm x 22.23mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | 3A102 | 3A103 | 3A103LF | 3A153 |
| Manufacturer | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics |
| RoHS Status | Not applicable | Not applicable | ROHS3 Compliant | Not applicable |
| Description | RADIAL-LEADED HIGH CURRENT CHOKE | RADIAL-LEADED HIGH CURRENT CHOKE | RADIAL-LEADED HIGH CURRENT CHOKE | RADIAL-LEADED HIGH CURRENT CHOKE |
| Series | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
