Product CatalogPart Number
3DAW4_4805S2
Manufacturer
GAPTEC ElectronicDescription
DC-DC INDUSTRIAL
Datasheet
DatasheetPackage
24-DIP Module, 9 Leads
In Stock
67,197 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3DAW4_4805S2
3DAW4_4805S2
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 600mA 18V - 75V Input
Quick Inquiry
3DAW4_4805S2
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 3DAW4_2 (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 2 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3DAW4_4805S1.5 | 3DAW4_4805S4 | 3DAW4_4805S6 | 3DAW4_4803S1.5 |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC-DC INDUSTRIAL | DC-DC INDUSTRIAL | DC-DC INDUSTRIAL | DC-DC INDUSTRIAL |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
3DAW4_1203S2
GAPTEC Electronic
3DAW4_1203S4
GAPTEC Electronic
3DAW4_1203S6
GAPTEC Electronic
3DAW4_1205D2
GAPTEC Electronic
3DAW4_1205D4
GAPTEC Electronic
3DAW4_1205D6
GAPTEC Electronic
3DAW4_1205S2
GAPTEC Electronic
3DAW4_1205S4
GAPTEC Electronic
3DAW4_1205S6
GAPTEC Electronic

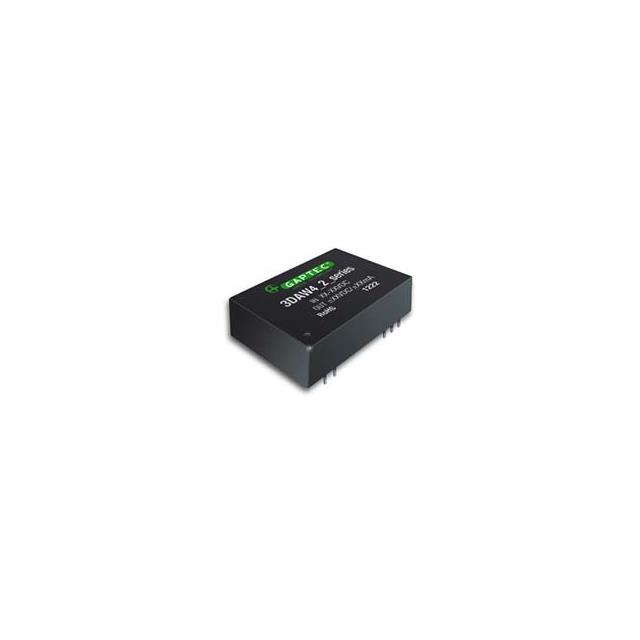

3DAW4_1212D2
GAPTEC Electronic
3DAW4_1212D4
GAPTEC Electronic
3DAW4_1212D6
GAPTEC Electronic
3DAW4_1212D6
GAPTEC Electronic
3DAW4_1212S2
GAPTEC Electronic

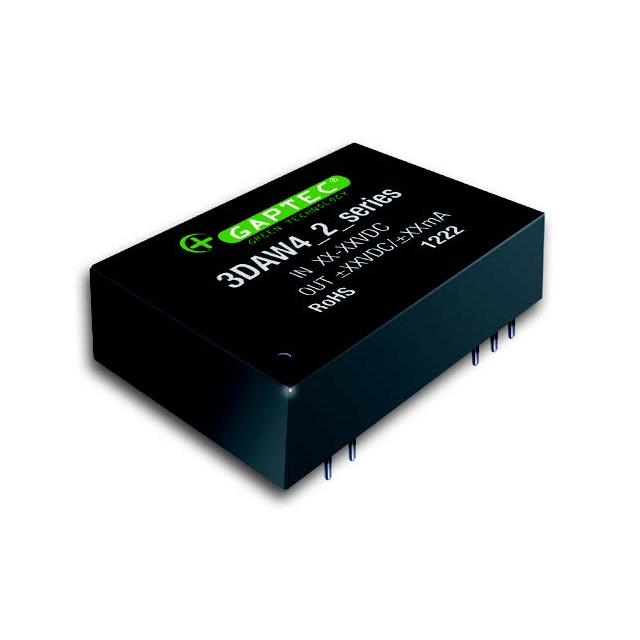

3DAW4_1212S4
