Product CatalogPart Number
3FTL689
Manufacturer
MEC SwitchesDescription
SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
DatasheetPackage
-
In Stock
74,562 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3FTL689
3FTL689

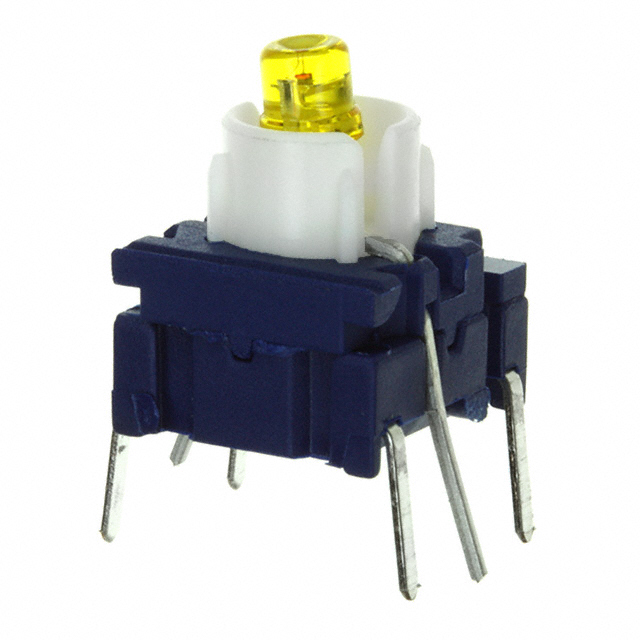

lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Through Hole
Quick Inquiry
3FTL689
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | MEC Switches |
| Series | Multimec® 3 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 10.40mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 10.10mm x 10.10mm |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 2 VDC |
| Operating Force | 300gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Sealed - Flux Protection |
| Operating Temperature | -40°C ~ 115°C |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Switch Travel | 1.00mm |
| Mechanical Life | 10,000,000 Cycles |
| Base Product Number | 3FTL6 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

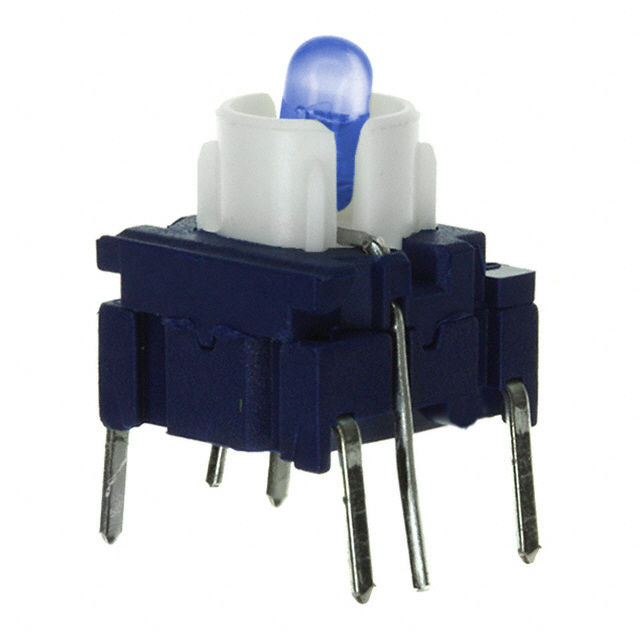

| Part Number | 3FTL680 | 3FTL68020 | 3FTL6 | 3FTL600 |
| Manufacturer | MEC Switches | MEC Switches | MEC Switches | MEC Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V |
| Series | Multimec® 3 | Multimec® 3 | Multimec® 3 | Multimec® 3 |
| Packaging | Tube | Tube | Tube | Tube |
