3KP5.0A_R2_00001

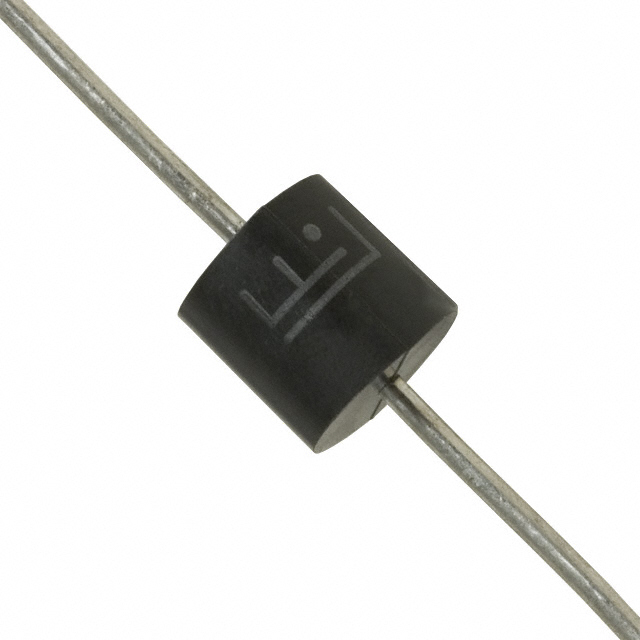

lmages are for reference only.3KP5.0A_R2_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetP600, Axial
20,204 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.2V Clamp 326A Ipp Tvs Diode Through Hole P600
3KP5.0A_R2_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | 3KP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 326A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | 3KP5.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

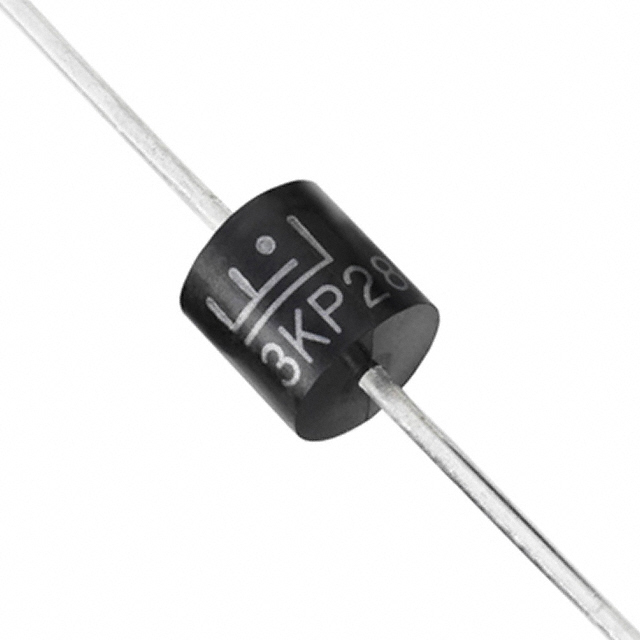

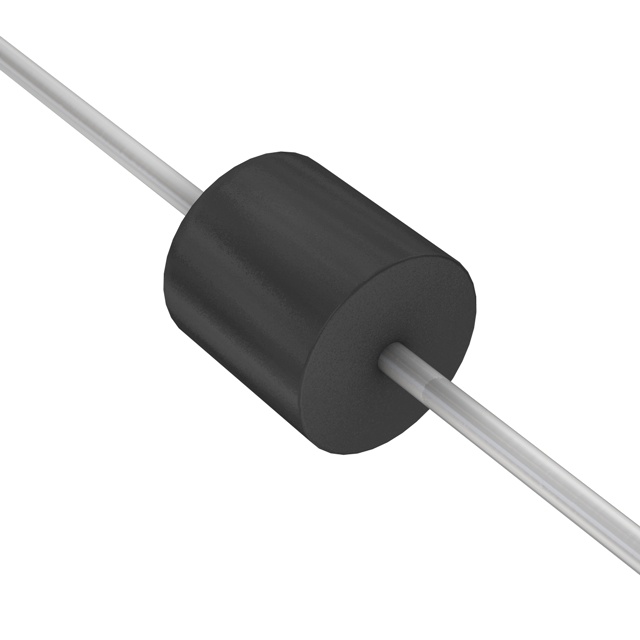

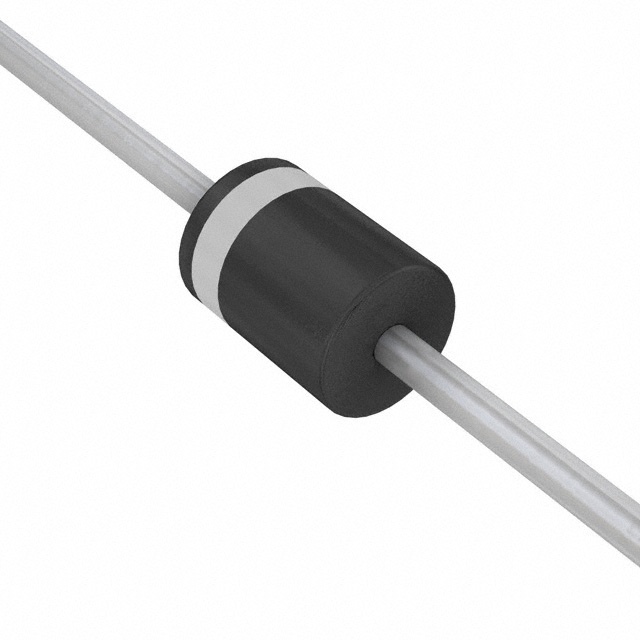

| Part Number | 3KP5.0 | 3KP5.0-B | 3KP5.0A | 3KP5.0A-AT/B |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | YAGEO |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 9.66VC P600 | TVS DIODE 5VWM 9.66VC P600 | TVS DIODE 5VWM 9.2VC P600 | TVS P600 5V 9.2V AUTO BOX |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | YAGEO |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) |
