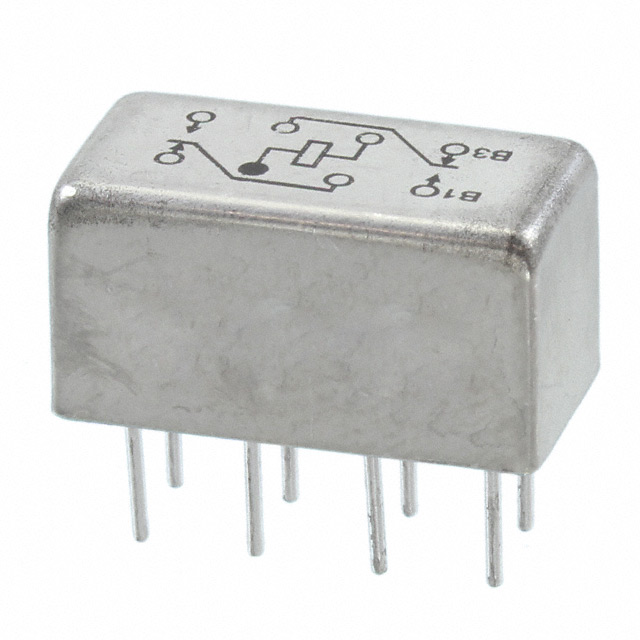

RELAY GEN PURPOSE DPDT 2A 26.5V
Datasheet-
82,972 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) Through Hole
3SBC5004K1R
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | 3SBC, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 230VA, 56W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 3SBC5 |
| Coil Current | 19.6 mA |
| Coil Resistance | 1.35 kOhms |
| Product Attribute |  |
 |
 |
|
| Part Number | 3SBC5004K1 | 3SBC5004K5 | 3SBC5004L1 | 3SBC5005K1 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 2A 26.5V | RELAY GEN PURPOSE DPDT 2A 26.5V | RELAY GEN PURPOSE DPDT 2A 18V | RELAY GENERAL PURPOSE DPDT 2A |
| Series | 3SBC, CII | 3SBC, CII | 3SBC, CII | 3SBC, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk |
