4-1393812-6

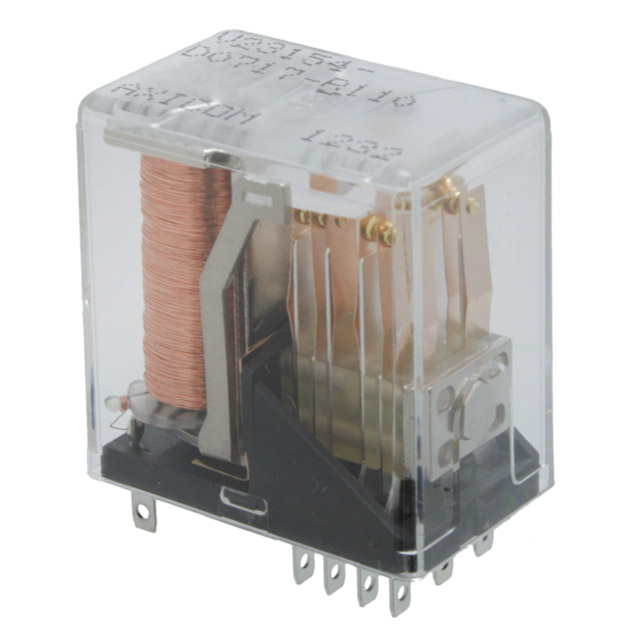

lmages are for reference only.4-1393812-6
RELAY GEN PURPOSE 4PDT 2A 20V
Datasheet-
39,869 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Socketable
4-1393812-6
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23054, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 20VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 150VDC - Max |
| Load - Max Switching | 250VA, 300W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 10.5 VDC |
| Must Release Voltage | - |
| Operate Time | 16 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393812 |
| Coil Current | 51.3 mA |
| Coil Resistance | 390 Ohms |
| Product Attribute | |
|
|
|
| Part Number | 4-1393812-0 | 4-1393812-2 | 4-1393812-4 | 4-1393812-7 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GENERAL PURPOSE | RELAY GEN PURPOSE 4PDT 2A 12.5V | RELAY GEN PURPOSE 4PDT 2A 16V | RELAY GEN PURPOSE 4PDT 2A 20V |
| Series | V23054, AXICOM | V23054, AXICOM | V23054, AXICOM | V23054, AXICOM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
