Product CatalogPart Number
4-1734839-5
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN FPC TOP 45POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
41,153 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
4-1734839-5
4-1734839-5
lmages are for reference only.Payment Methods
Delivery Services
45 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
4-1734839-5
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 45 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.081" (2.05mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 250V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | Flash |
| Housing Color | Natural |
| Actuator Color | Ivory |
| Mating Cycles | - |
| Base Product Number | 1734839 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 4-1734839-0 | 4-1734839-1 | 4-1734839-2 | 4-1734839-3 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN FPC TOP 40POS 0.5MM R/A | CONN FPC TOP 41POS 0.5MM R/A | CONN FPC TOP 42POS 0.5MM R/A | CONN FPC TOP 43POS 0.5MM R/A |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

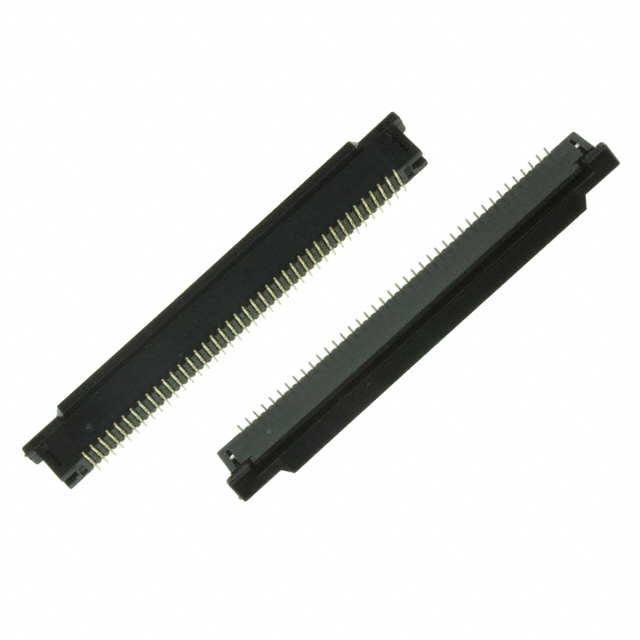

4-1734248-0
TE Connectivity AMP Connectors

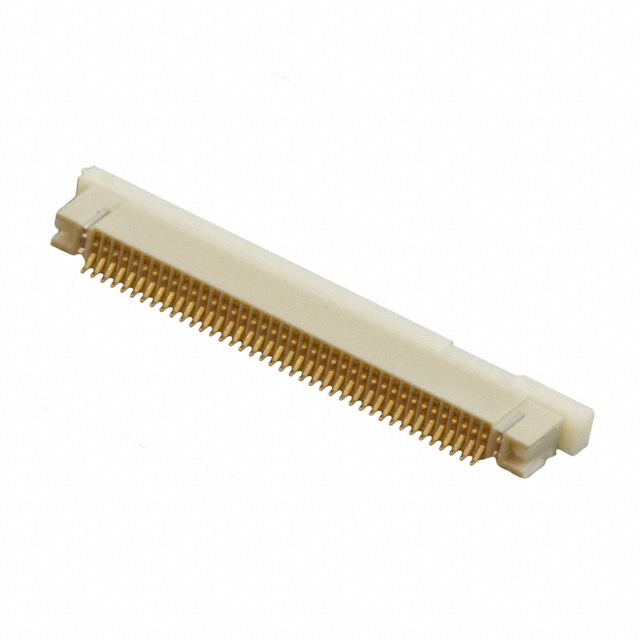

4-1734592-0
TE Connectivity AMP Connectors

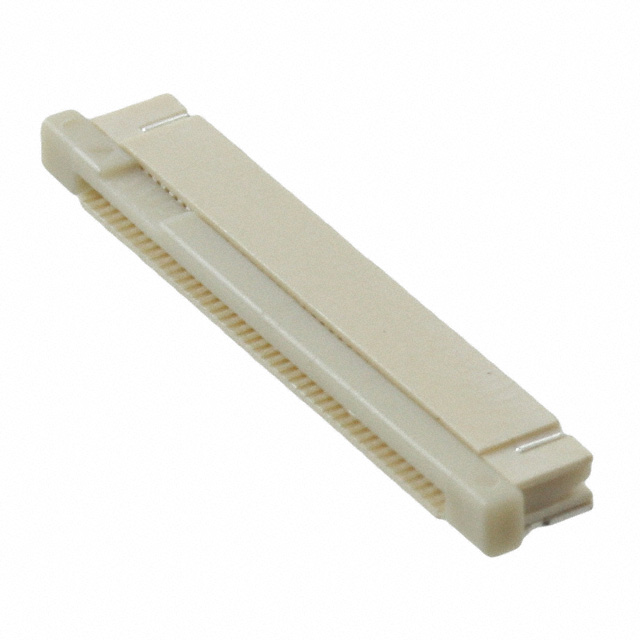

4-1734592-1
TE Connectivity AMP Connectors

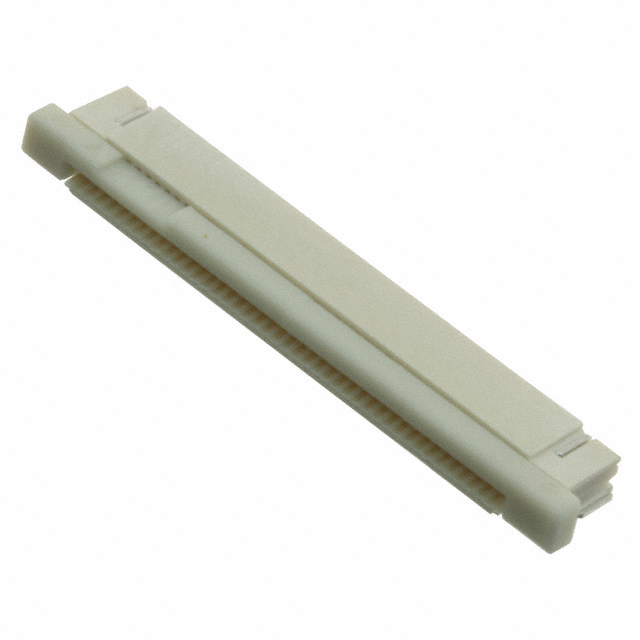

4-1734592-2
TE Connectivity AMP Connectors

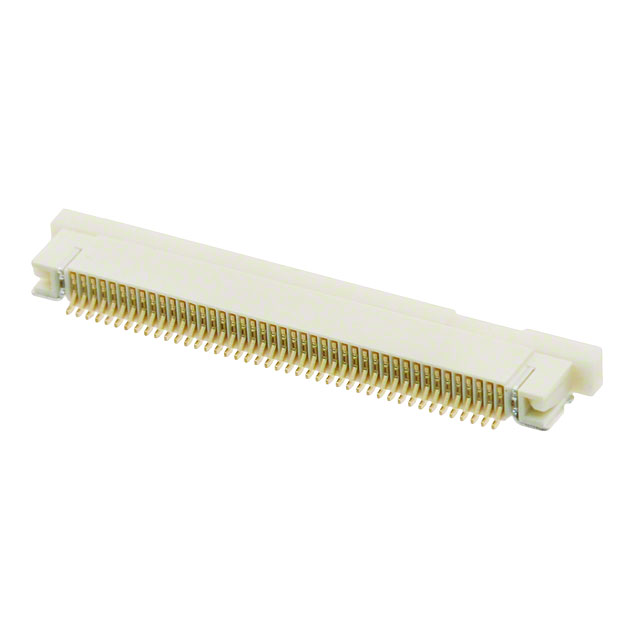

4-1734592-3
TE Connectivity AMP Connectors

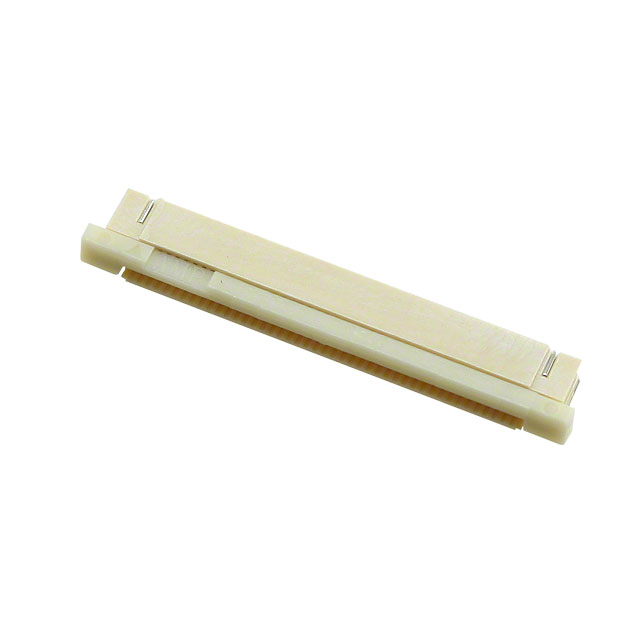

4-1734592-4
TE Connectivity AMP Connectors

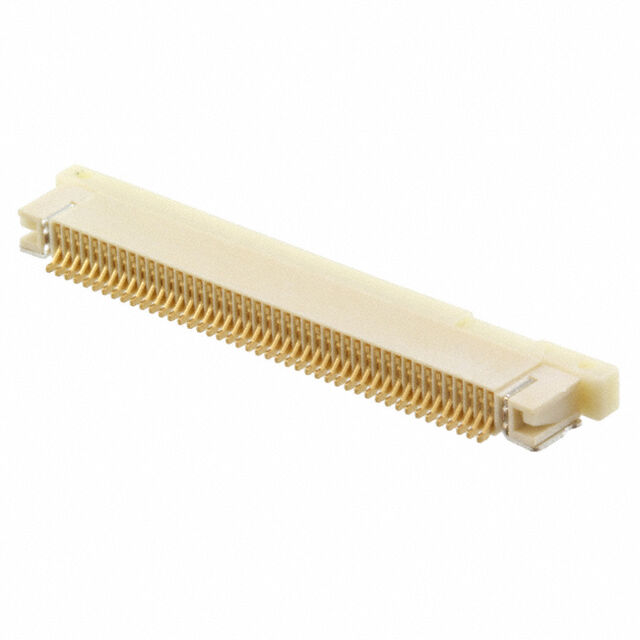

4-1734592-5
TE Connectivity AMP Connectors

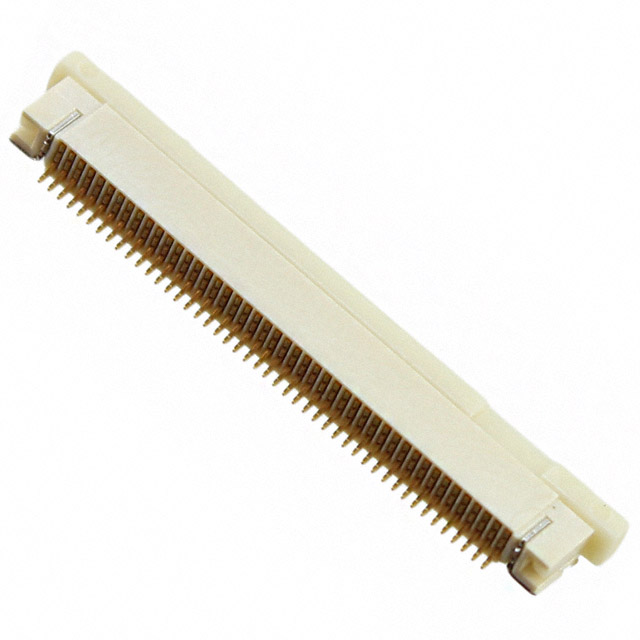

4-1734592-6
TE Connectivity AMP Connectors
4-1734592-7
TE Connectivity AMP Connectors

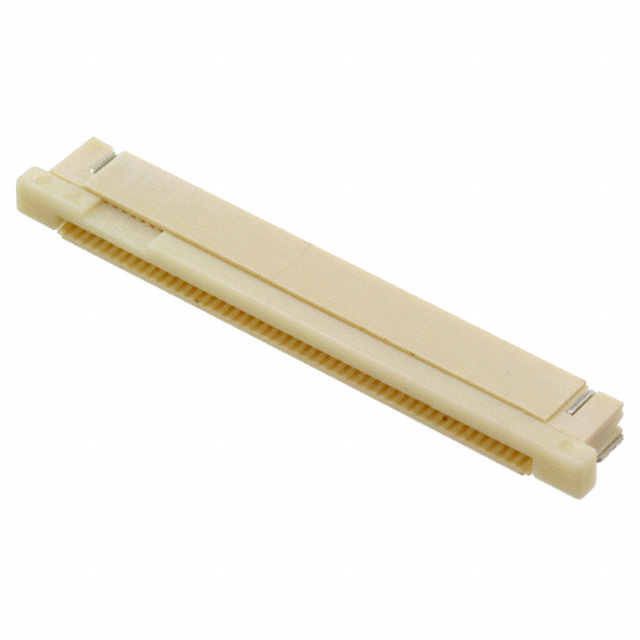

4-1734592-8
TE Connectivity AMP Connectors

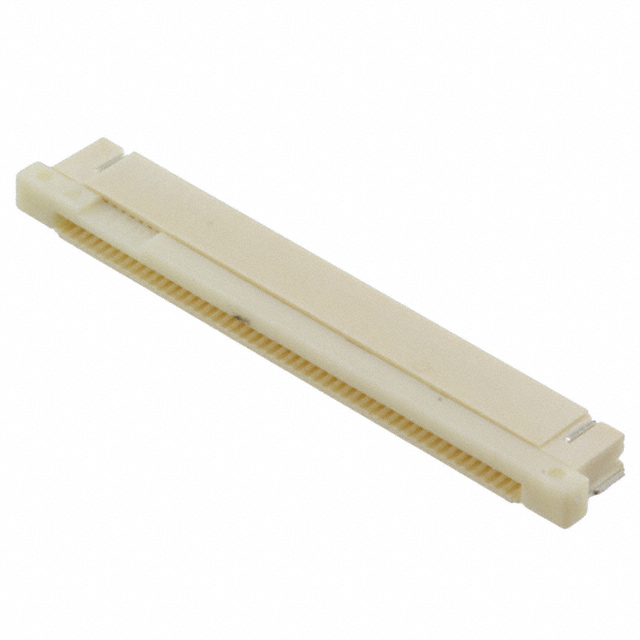

4-1734592-9
TE Connectivity AMP Connectors
4-1734741-0
TE Connectivity AMP Connectors

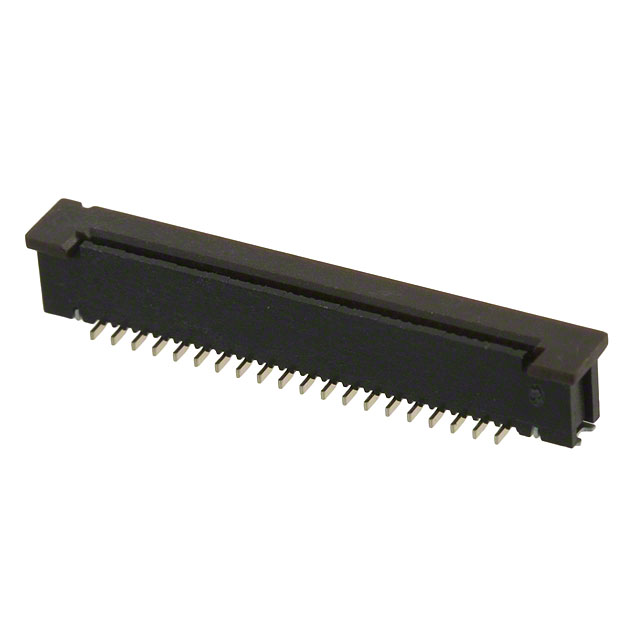

4-1734742-0
TE Connectivity AMP Connectors

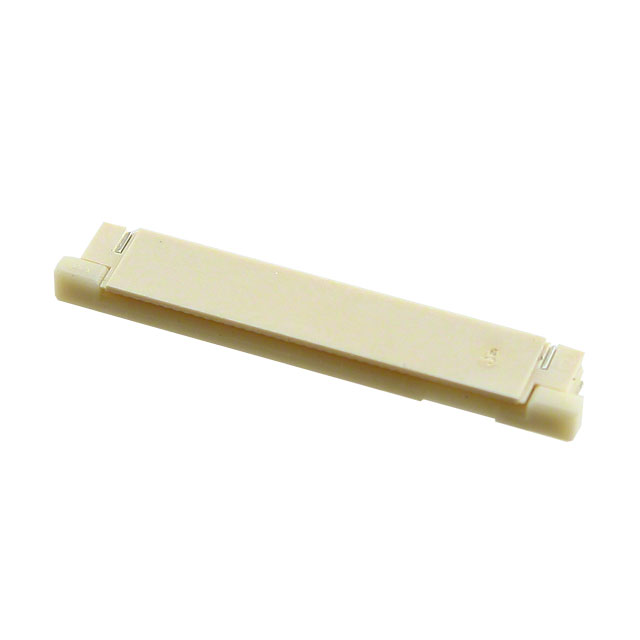

4-1734839-0
TE Connectivity AMP Connectors

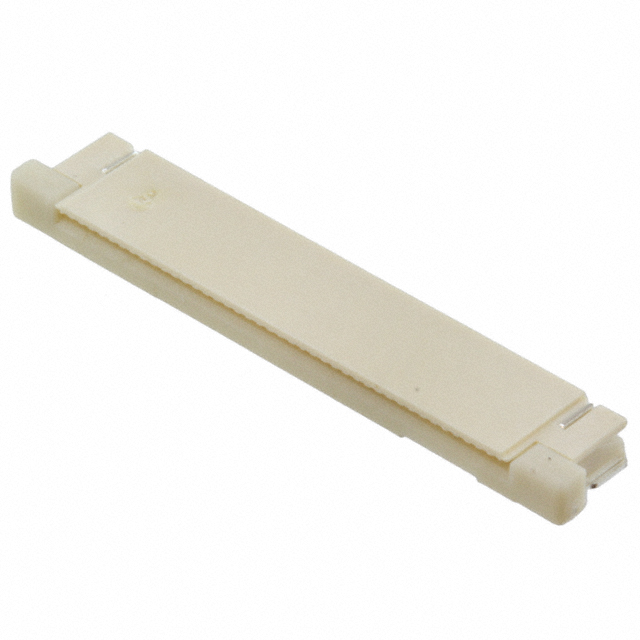

4-1734839-1
TE Connectivity AMP Connectors

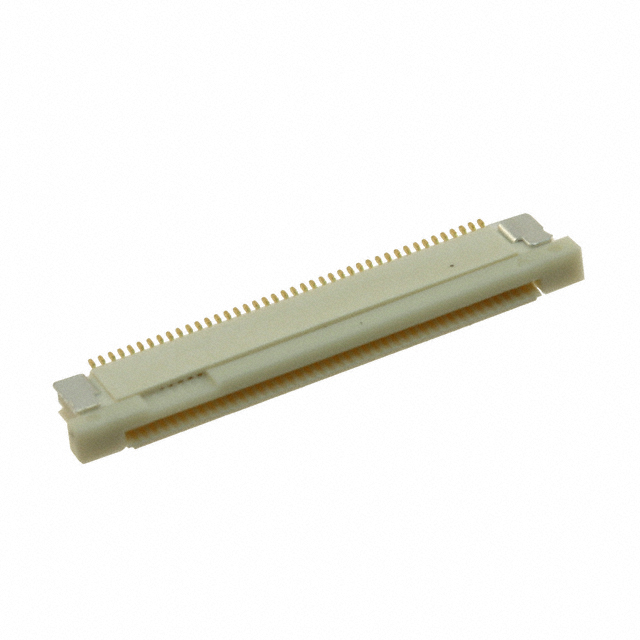

4-1734839-2
TE Connectivity AMP Connectors

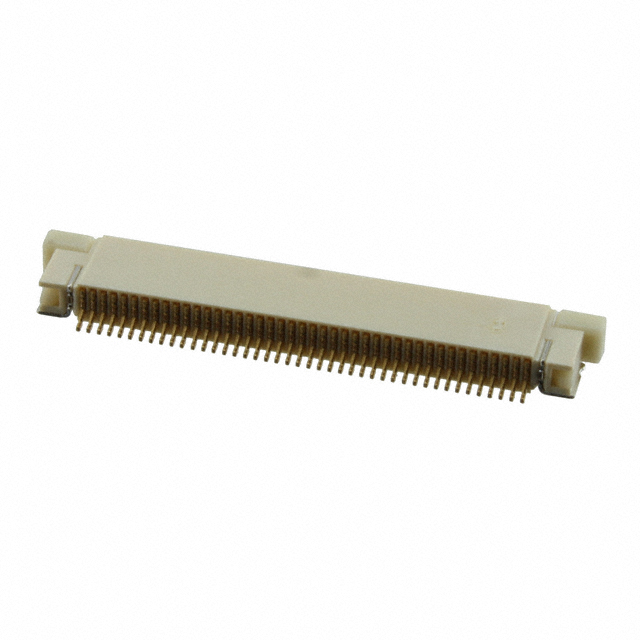

4-1734839-3
TE Connectivity AMP Connectors

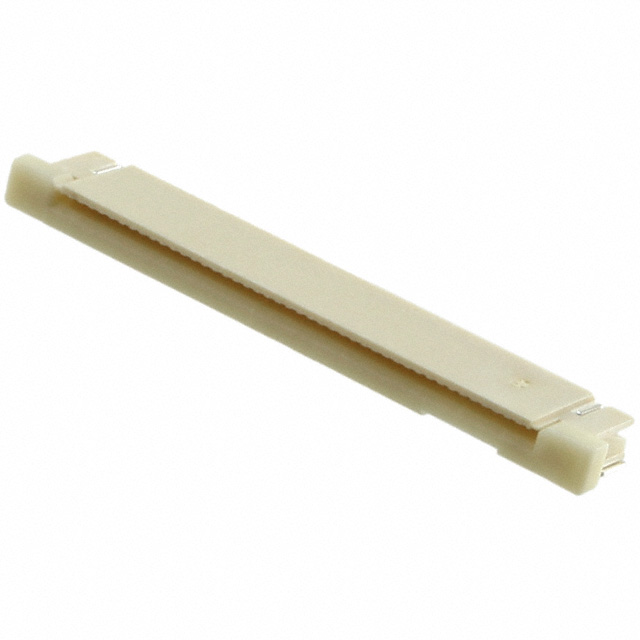

4-1734839-4
