Product CatalogPart Number
4.8DBTSW_121509_D3P
Manufacturer
GAPTEC ElectronicDescription
DC-DC IGBT & SIC
Datasheet
DatasheetPackage
24-DIP Module, 8 Leads
In Stock
65,744 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
4.8DBTSW_121509_D3P
4.8DBTSW_121509_D3P

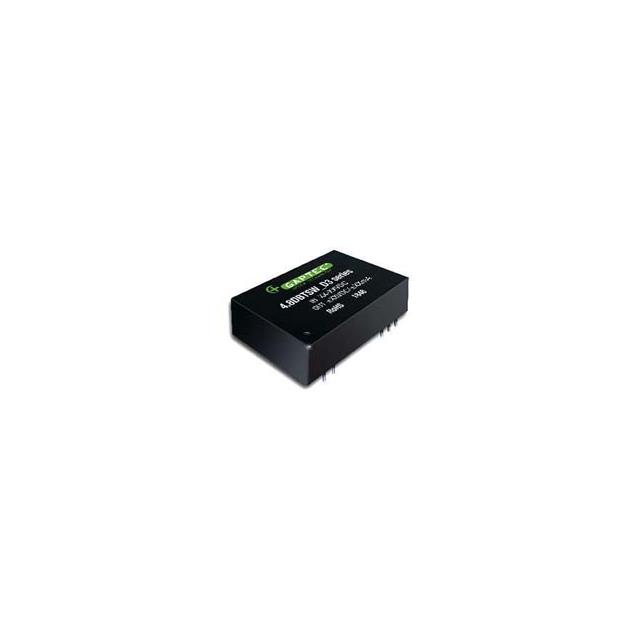

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -9V 200mA, 200mA 7V - 18V Input
Quick Inquiry
4.8DBTSW_121509_D3P
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 4.8DBTSW_D3 (4.8W) |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 4.8 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Size / Dimension | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 4.8DBTW_121509_D3P | 4.8DBTW_241509_D3P | 4AA12-P4-25PPM-M-E | PQC30-48-S15-O |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | ULTRAVOLT / Advanced Energy | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC IGBT & SIC | DC-DC IGBT & SIC | DC/DC CONVERTER | DC-DC ISOLATED, 30 W, 36~75 VDC |
| Series | GAPTEC Electronic | GAPTEC Electronic | ULTRAVOLT / Advanced Energy | CUI Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tray |
