40FLZ-RSM2-R-TB(LF)(SN)
lmages are for reference only.40FLZ-RSM2-R-TB(LF)(SN)
CONN FFC BOTTOM 40POS 0.5MM R/A
Datasheet-
58,781 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
40FLZ-RSM2-R-TB(LF)(SN)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | JST Sales America Inc. |
| Series | FLZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 40 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | 40FLZ-RS |
| Product Attribute |  |
|
|

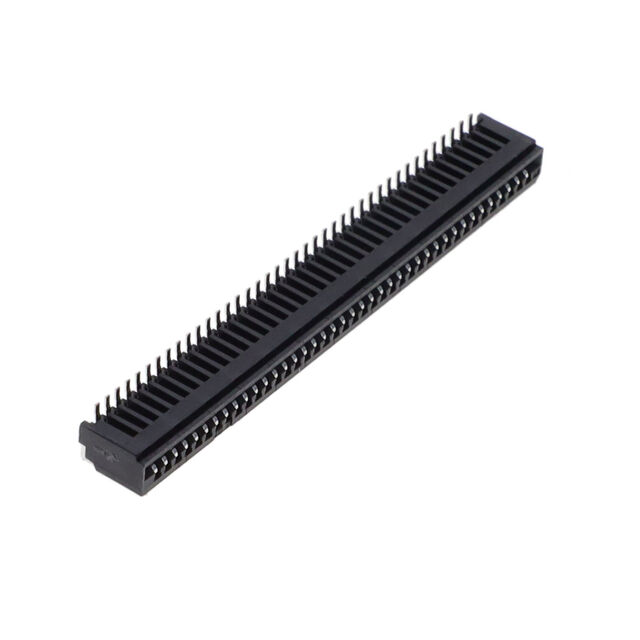

(SN).jpg "40FMN-BMT-A-TF(LF)(SN)") |
| Part Number | 40FLZ-RSM1-R-TB | 40FLZ-SM1-R-TB | 40FLZ-SM2-R-TB(LF)(SN)(P)- | 40FMN-BMT-A-TF(LF)(SN) |
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN FFC BOTTOM 40POS 0.5MM R/A | CONN FFC FPC TOP 40POS 0.5MM R/A | CONN FFC FPC TOP 40POS 0.5MM R/A | CONN FFC VERT 40POS 1MM SMD |
| Series | FLZ | FLZ | FLZ | FMN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
