40IMX15-03-8RG

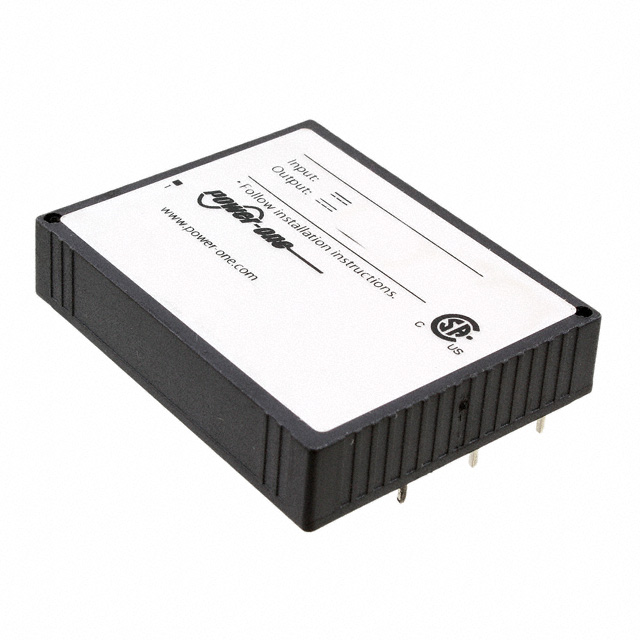

lmages are for reference only.40IMX15-03-8RG
DC DC CONVERTER 3.3V 15W
Datasheet17-DIP Module, 11 Leads
82,656 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module, Conformal Coated DC DC Converter 1 Output 3.3V 4.5A 16.8V - 75V Input
40IMX15-03-8RG
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher IMX15 (15W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16.8V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.5A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 17-DIP Module, 11 Leads |
| Size / Dimension | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | 40IMX15 |
| Voltage - Isolation | 2.1 kV |
| Product Attribute | |
 |
 |
|
| Part Number | 40IMX15-03-8RG | 40IMX15-05-8R | 40IMX15-05-8RG | 40IMX15-05-8RG |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 15W | DC DC CONVERTER 5.1V 15W | DC DC CONVERTER 5.1V 15W | DC DC CONVERTER 5.1V 15W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
