4203-003

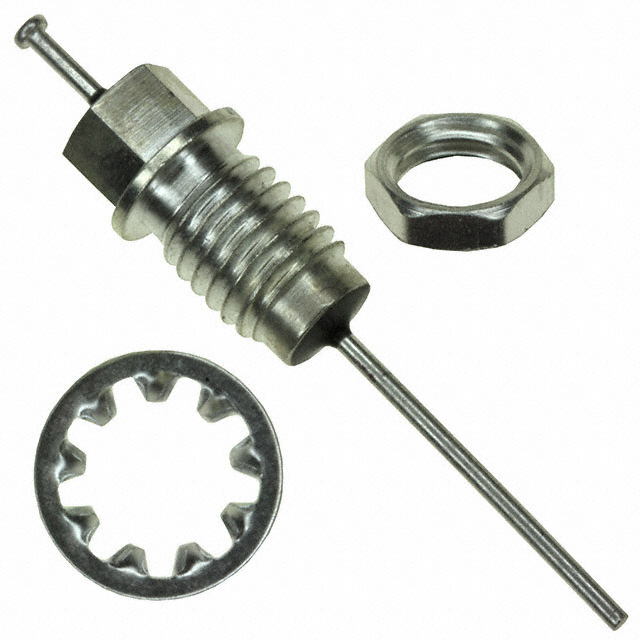

lmages are for reference only.4203-003
FILTER LC(PI) 1500PF CHASSIS
DatasheetAxial, Bushing, 1 Turret Lead
88,588 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1500pF 10 A Axial, Bushing, 1 Turret Lead
4203-003
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 4200 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 45dB @ 100MHz |
| Resistance - Channel (Ohms) | - |
| Current | 10 A |
| Values | C = 1500pF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 200V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing, 1 Turret Lead |
| Size / Dimension | 0.250" Dia x 0.469" L (6.35mm x 11.91mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | 4203-000 | 4203-000 | 4203-000LF | 4203-000LF |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 12-32 UNEF-2A PI, AND C FILTERS | 12-32 UNEF-2A PI, AND C FILTERS | FILTER LC(PI) 1500PF CHASSIS | FILTER LC(PI) 1500PF CHASSIS |
| Series | * | * | 4200 | 4200 |
| Packaging | Bulk | Bulk |
