4205-501
lmages are for reference only.4205-501
TUBULAR FILTER
DatasheetAxial, Bushing
42,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order 1 Channel C = 65pF 15 A Axial, Bushing
4205-501
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 4205 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 3dB @ 150MHz, 16dB @ 1GHz, 35dB @ 5GHz, 42dB @ 10GHz |
| Resistance - Channel (Ohms) | - |
| Current | 15 A |
| Values | C = 65pF |
| ESD Protection | No |
| Operating Temperature | - |
| Applications | - |
| Voltage - Rated | 125V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing |
| Size / Dimension | 0.188" Dia x 0.200" L (4.78mm x 5.08mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|

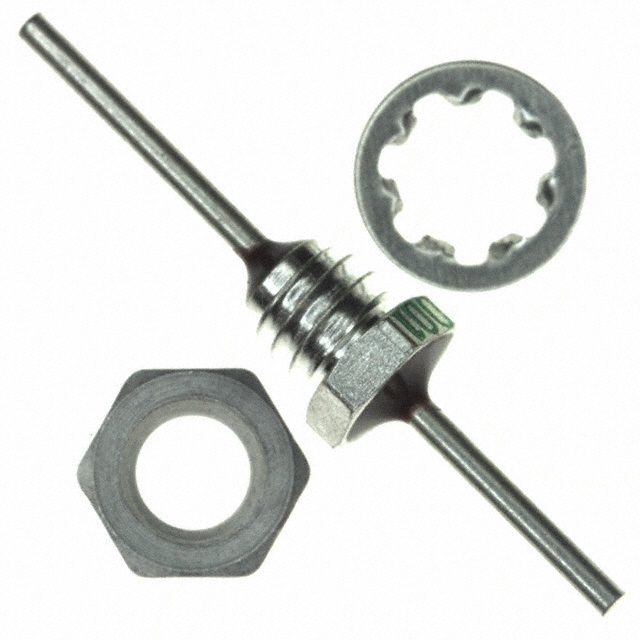

| Part Number | 4205-500 | 4205-500 | 4205-501 | 4205-001 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TUBULAR FILTER | TUBULAR FILTER | TUBULAR FILTER | FILTER LC(PI) 1500PF CHASSIS |
| Series | 4205 | 4205 | 4205 | 4200 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
