4304-007
lmages are for reference only.4304-007
CAP FEEDTHRU 5000PF 100V AXIAL
DatasheetAxial, Press Fit
37,748 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5000 pF Feed Through Capacitor 100V 5 A Axial, Press Fit
4304-007
| Category | Filters - Feed Through Capacitors - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 4304 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Tolerance | 0%, +100% |
| Voltage - Rated | 100V |
| Current | 5 A |
| DC Resistance (DCR) (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Insertion Loss | 30dB @ 100MHz |
| Temperature Coefficient | - |
| Ratings | - |
| Package / Case | Axial, Press Fit |
| Size / Dimension | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) |
| Height (Max) | - |
| Thread Size | - |
| Capacitance | 5000 pF |
| Mounting Type | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

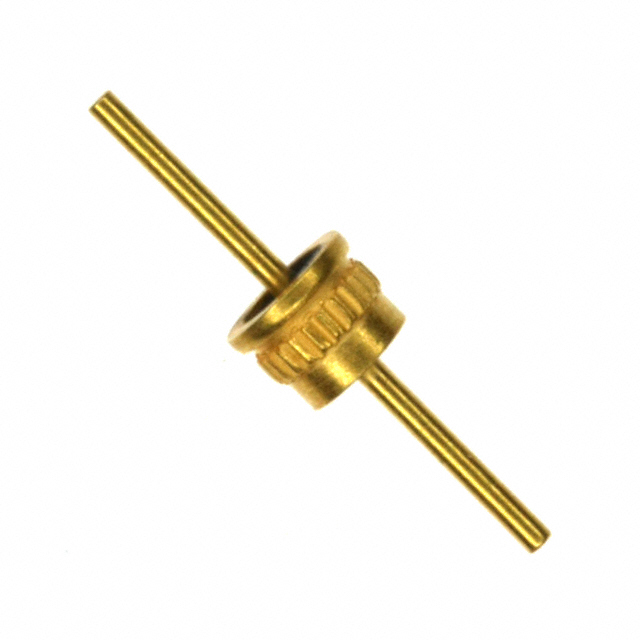

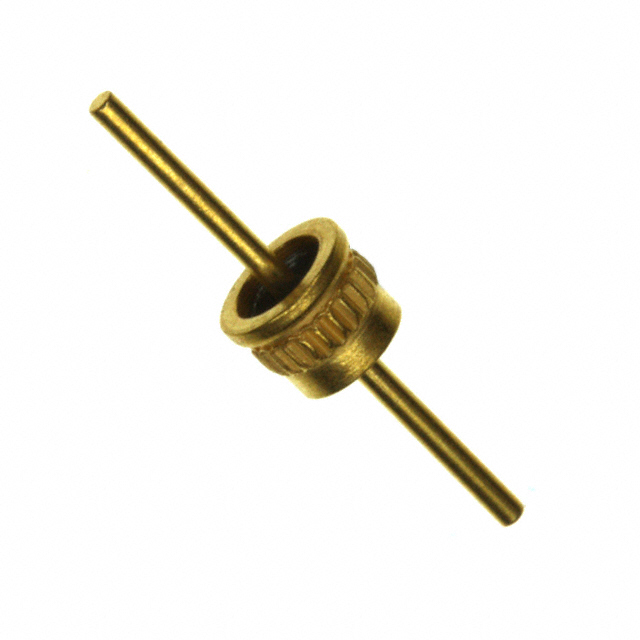

| Part Number | 4304-000 | 4304-000LF | 4304-003LF | 4304-005 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS Compliant | RoHS non-compliant |
| Description | CAP FEEDTHRU 10PF 200V AXIAL | CAP FEEDTHRU 10PF 200V AXIAL | CAP FEEDTHRU 100PF 200V AXIAL | CAP FEEDTHRU 1200PF 200V AXIAL |
| Series | 4304 | 4304 | 4304 | 4304 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
