Product CatalogPart Number
444CNQ040
Manufacturer
SMC Diode SolutionsDescription
DIODE MODULE SCHOT 40V 220A PRM4
Datasheet
DatasheetPackage
PRM4
In Stock
79,703 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
444CNQ040
444CNQ040
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 40 V 220A Chassis Mount PRM4
Quick Inquiry
444CNQ040
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) (per Diode) | 220A |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 220 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 20 mA @ 40 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | PRM4 |
| Supplier Device Package | PRM4 (Non-Isolated) |
| Base Product Number | 444CNQ |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

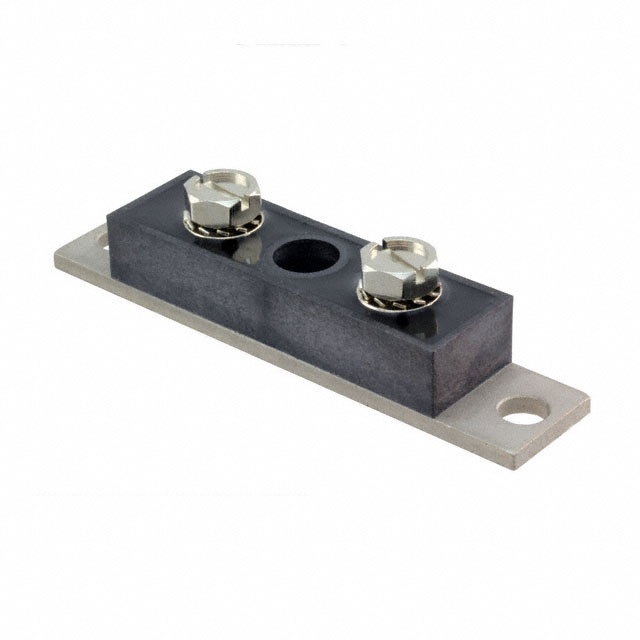

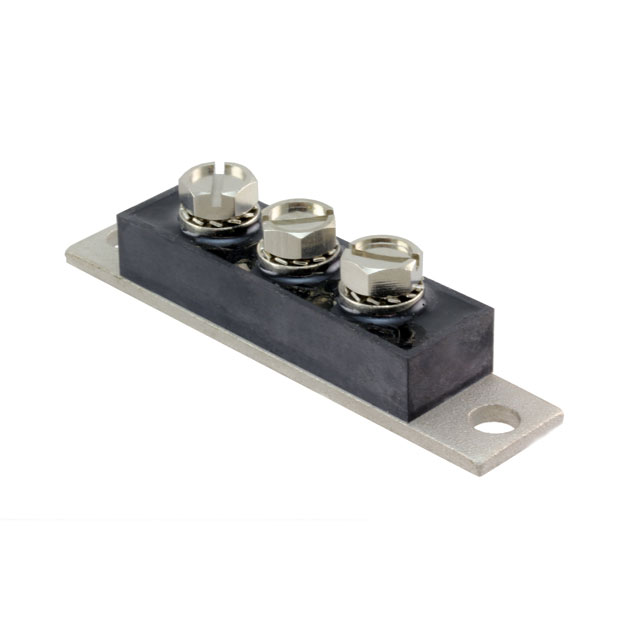

| Part Number | 444CNQ035 | 444CNQ045 | 444CMQ035 | 444CMQ040 |
| Manufacturer | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE SCHOT 35V 220A PRM4 | DIODE MODULE SCHOT 45V 220A PRM4 | DIODE MODULE SCHOT 35V 220A PRM4 | DIODE MODULE SCHOT 40V 220A PRM4 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
