Product CatalogPart Number
450-80-214-00-106191
Manufacturer
Preci-DipDescription
CONN HEADER SMD 14POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
17,646 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
450-80-214-00-106191
450-80-214-00-106191
lmages are for reference only.Payment Methods
Delivery Services

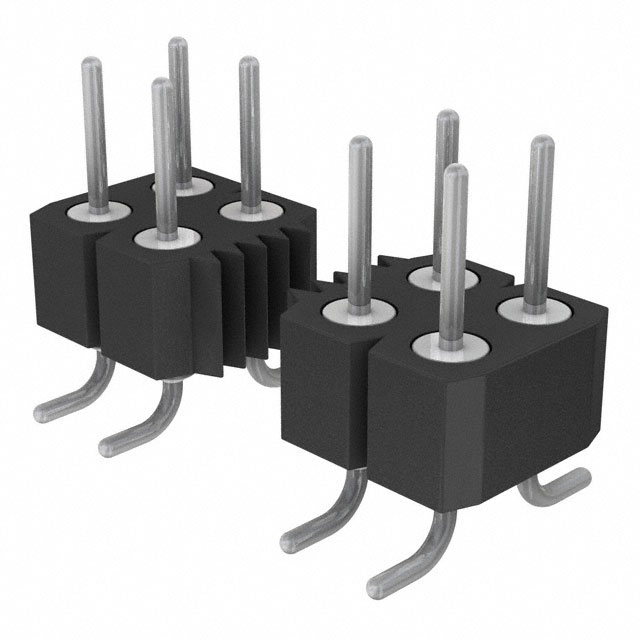

Connector Header Surface Mount 14 position 0.100" (2.54mm)
Quick Inquiry
450-80-214-00-106191
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Preci-Dip |
| Series | 450 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 150VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | 450-80 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 450-80-214-00-106101 | 450-80-214-00-001101 | 450-80-214-00-006101 | 450-80-214-00-013101 |
| Manufacturer | Preci-Dip | Preci-Dip | Preci-Dip | Preci-Dip |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER SMD 14POS 2.54MM | CONN HEADER VERT 14POS 2.54MM | CONN HEADER VERT 14POS 2.54MM | CONN HEADER VERT 14POS 2.54MM |
| Series | 450 | 450 | 450 | 450 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
