4525DO-DS5AI030DP
lmages are for reference only.4525DO-DS5AI030DP
SENSOR DIFF PRESS 30PSI 8DIP PCB
Datasheet8-DIP Module
51,471 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 30PSI (206.84kPa) Differential Male - 0.14" (3.56mm) Tube, Dual 14 b 8-DIP Module
4525DO-DS5AI030DP
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | MS4525DO |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 4525 |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | 30PSI (206.84kPa) |
| Output Type | I2C |
| Output | 14 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 5V |
| Port Size | Male - 0.14" (3.56mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 90PSI (620.53kPa) |
| Operating Temperature | -25°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

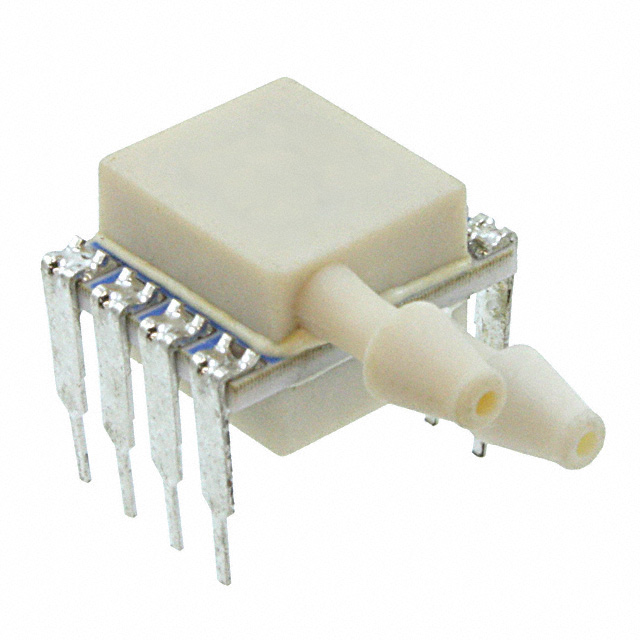

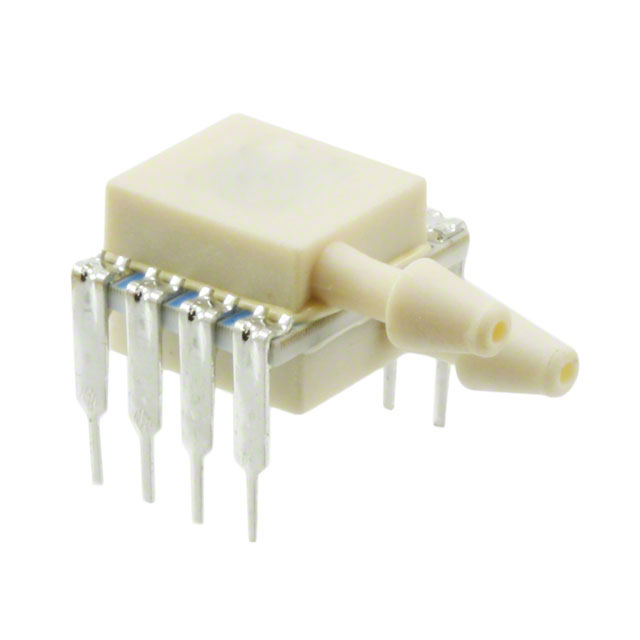

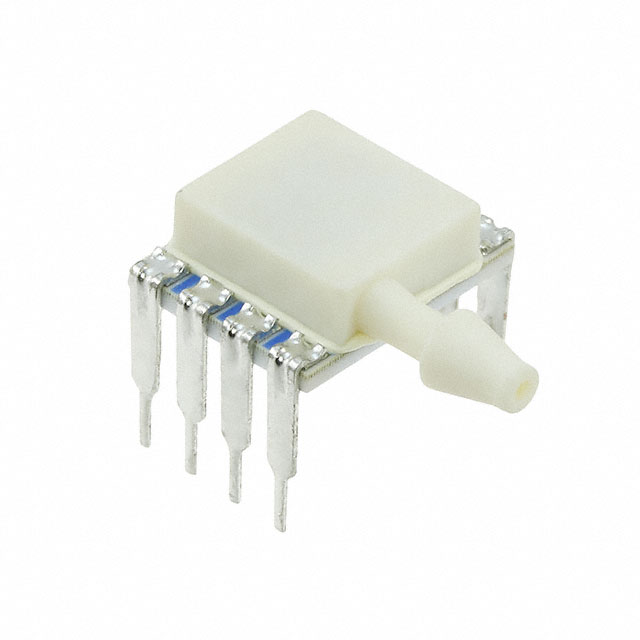

| Part Number | 4525DO-DS5AI001DP | 4525DO-DS5AI015DP | 4525DO-DS3BK001DPL | 4525DO-SS3AS015AP |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 1PSID 0.14" 14BIT | SENSOR 15PSID 0.14" 14BIT | PRESS XDCR,DIGITAL,PSI RANGE | SENSOR 15PSIA 0.14" 14BIT |
| Series | MS4525DO | MS4525DO | * | MS4525DO |
| Packaging | Tray | Tray | Tray | Tray |
