Product CatalogPart Number
4590R-562J
Manufacturer
DelevanDescription
FIXED IND 5.6UH 7.77A 11 MOHM TH
Datasheet
DatasheetPackage
Axial
In Stock
82,091 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
4590R-562J
4590R-562J
lmages are for reference only.Payment Methods
Delivery Services
5.6 µH Unshielded Drum Core, Wirewound Inductor 7.77 A 11mOhm Max Axial
Quick Inquiry
4590R-562J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delevan |
| Series | 4590R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 7.77 A |
| Current - Saturation (Isat) | 6.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | 4590R-562K | 4590R-563J | 4590R-563K | 4590R-564J |
| Manufacturer | Delevan | Delevan | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.6UH 7.77A 11 MOHM TH | FIXED IND 56UH 3.93A 43 MOHM TH | FIXED IND 56UH 3.93A 43 MOHM TH | FIXED IND 560UH 1.15A 504MOHM TH |
| Series | Delevan | Delevan | Delevan | Delevan |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

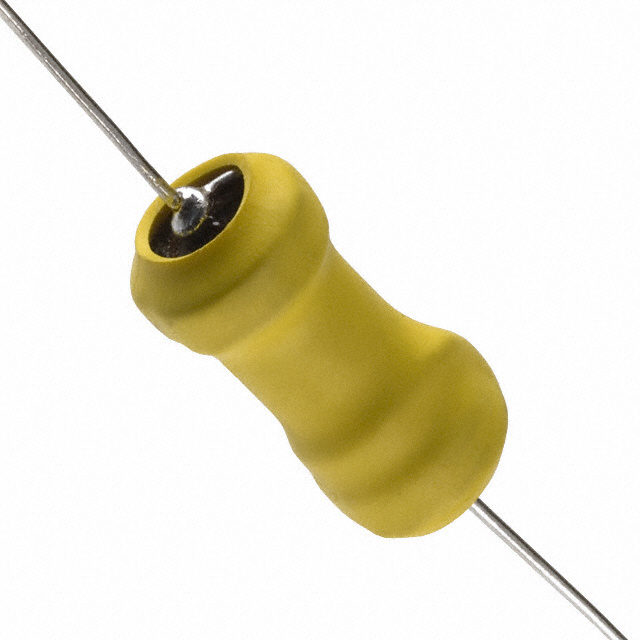

4590R-103J
