49470C
lmages are for reference only.49470C
FIXED IND 47UH 2.1A 191MOHM SMD
DatasheetNonstandard, 4 Lead
33,505 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µH Shielded Wirewound Inductor 2.1 A 191mOhm Max Nonstandard, 4 Lead
49470C
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 4900 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | - |
| Current Rating (Amps) | 2.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 191mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | 49 |
| Product Attribute |  |
 |
 |
 |

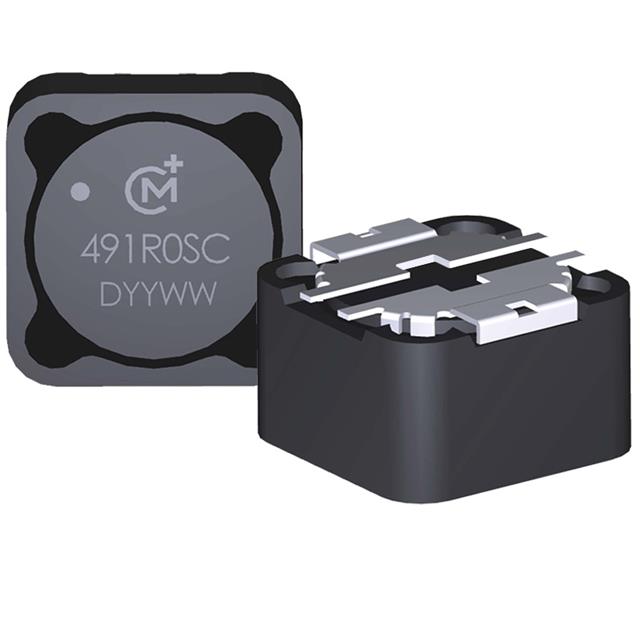

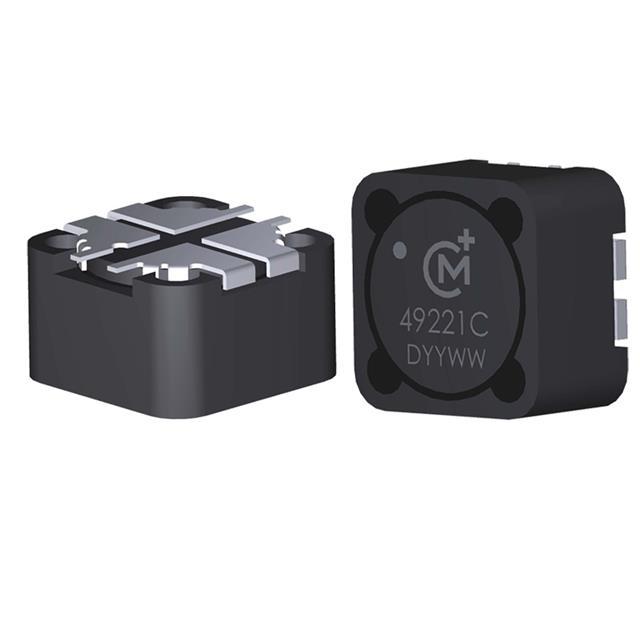

| Part Number | 49470SC | 49471SC | 494R7C | 494R7SC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 2.3A 100MOHM SMD | FIXED IND 470UH 750MA 810MOHM SM | FIXED IND 4.7UH 6.5A 17.1MOHM SM | FIXED IND 4.7UH 7.7A 12MOHM SMD |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
