Product CatalogPart Number
4984
Manufacturer
Pololu CorporationDescription
12V, 2.5A STEPUP/DOWN S13V25F12
Datasheet
DatasheetPackage
5-SIP Module
In Stock
50,706 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
4984
4984
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 12V 2.5A 2.8V - 22V Input
Quick Inquiry
4984
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Pololu Corporation |
| Series | S13V25 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.8V |
| Voltage - Input (Max) | 22V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 30 W |
| Applications | - |
| Features | OCP, OTP, OVP, RVP, UVLO |
| Operating Temperature | - |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | - |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Floating |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 4980 | 4981 | 4982 | 4983 |
| Manufacturer | Pololu Corporation | Pololu Corporation | Pololu Corporation | Pololu Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

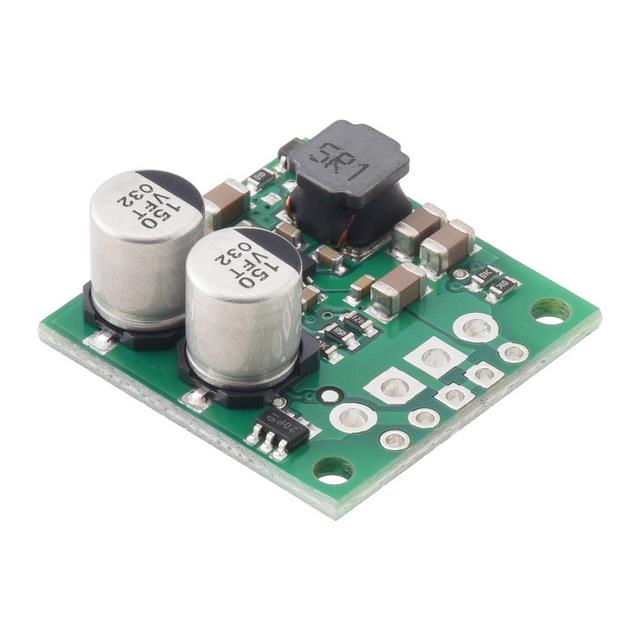

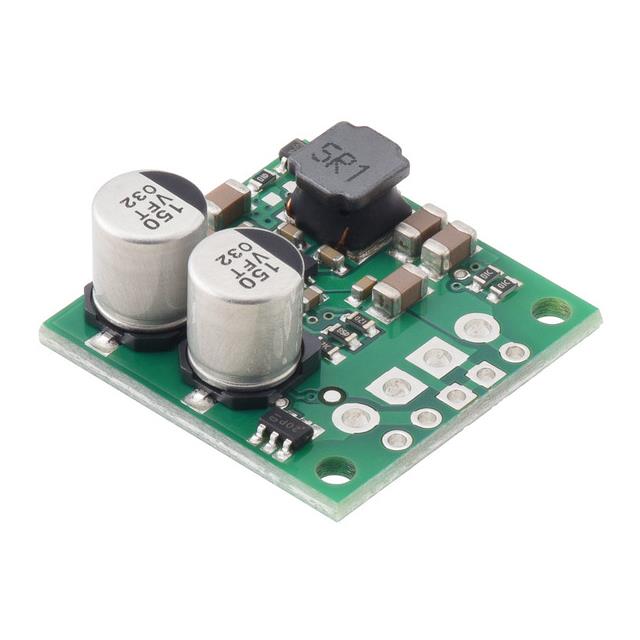

| Description | 3.3V, 2.5A STEPUP/DOWN S13V25F3 | 6V, 2.5A STEPUP/DOWN S13V25F6 | 7.5V, 2.5A STEPUP/DOWN S13V25F7 | 9V, 2.5A STEPUP/DOWN S13V25F9 |
| Series | Pololu Corporation | Pololu Corporation | Pololu Corporation | Pololu Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
