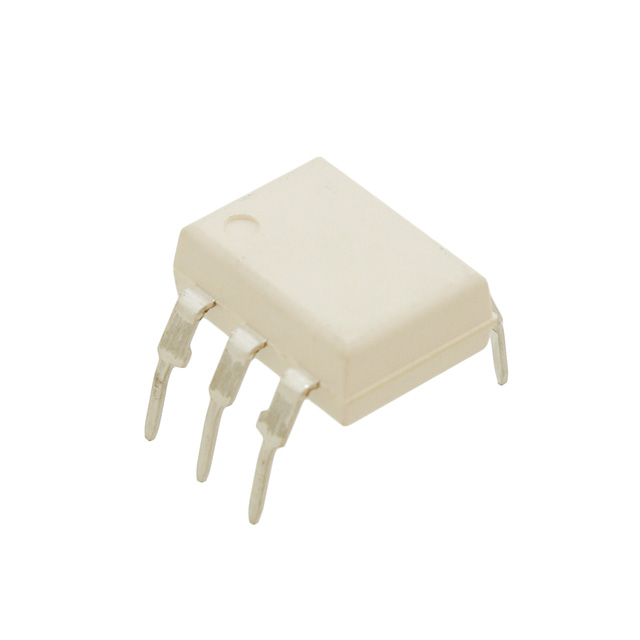

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
4N36M
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 10µs, 9µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package | 6-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | 4N36 | 4N36 | 4N36 | 4N36 |
| Manufacturer | Texas Instruments | Isocom Components 2004 LTD | onsemi | Vishay Semiconductor Opto Division |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANSISTOR OUTPUT OPTOCOUPLER | 6PIN TRANSISTOR DETECTOR, SINGLE | OPTOISO 5.3KV TRANS W/BASE 6DIP | OPTOISO 5KV TRANS W/BASE 6DIP |
| Series | - | 4N36 | - | - |
| Packaging | Bulk | Tube | Tube | Tube |
