4SEP220M
lmages are for reference only.4SEP220M
CAP ALUM POLY 220UF 20% 4V TH
DatasheetRadial, Can
67,393 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µF 4 V Aluminum - Polymer Capacitors Radial, Can 35mOhm 3000 Hrs @ 105°C
4SEP220M
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 128 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 100 kHz |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 4SEP |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

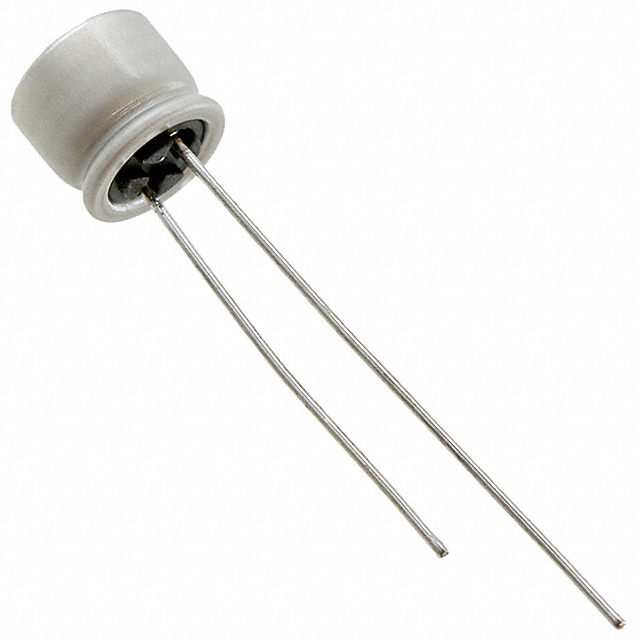

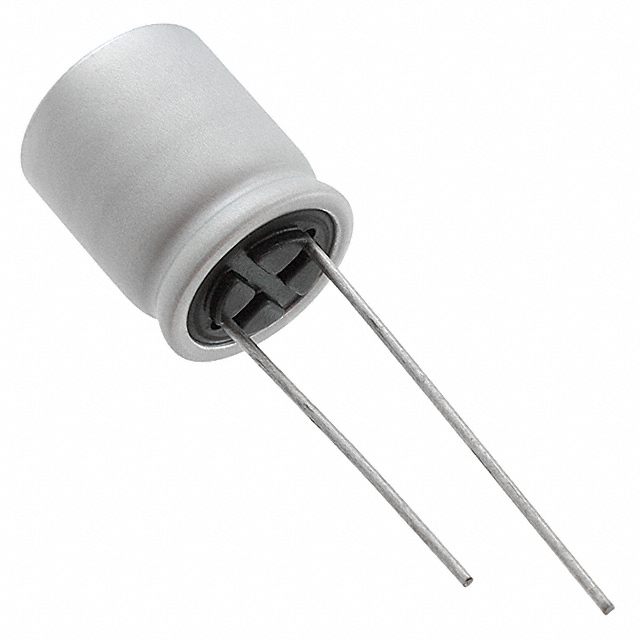

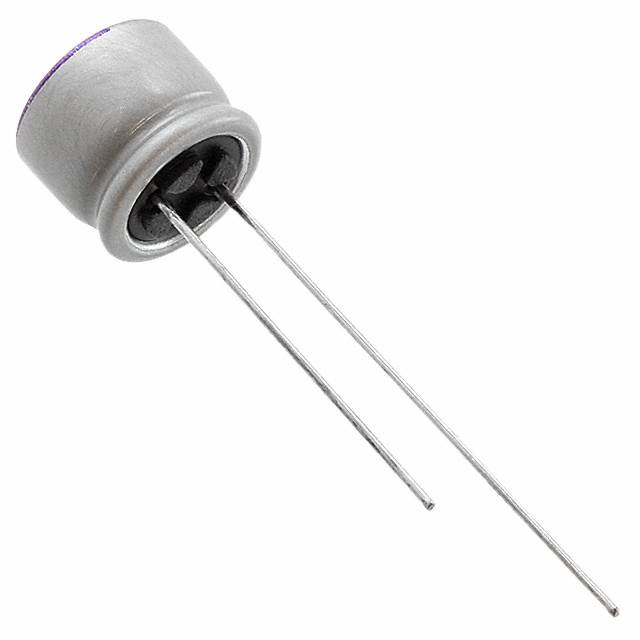

| Part Number | 4SEP220M+TSS | 4SEP100M | 4SEP100M+TSS | 4SEP1200M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 220UF 20% 4V TH | CAP ALUM POLY 100UF 20% 4V TH | CAP ALUM POLY 100UF 20% 4V TH | CAP ALUM POLY 1200UF 20% 4V TH |
| Series | OS-CON™, SEP | OS-CON™, SEP | OS-CON™, SEP | OS-CON™, SEP |
| Packaging | Tape & Box (TB) | Bulk | Tape & Box (TB) | Bulk |
