4SMF5.0A

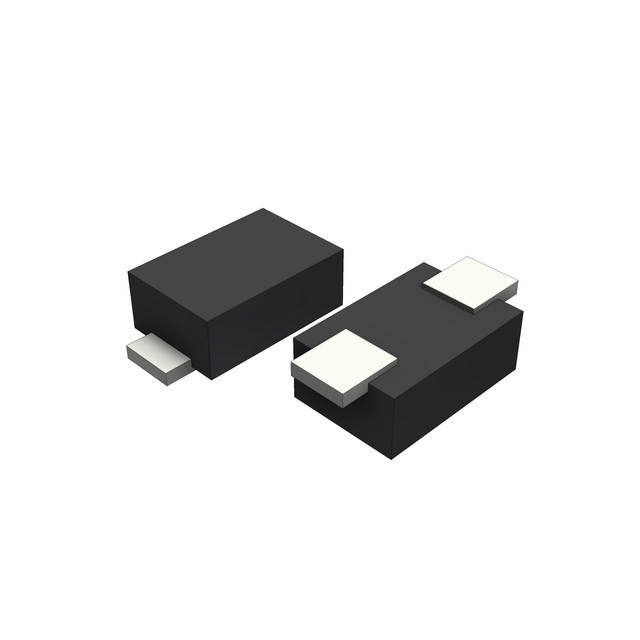

lmages are for reference only.4SMF5.0A
SURFACE MOUNT UNI/BI-DIRECTIONAL
DatasheetSOD-123F
91,697 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SOD-123FL
4SMF5.0A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | 4SMF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123FL |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 4SMF33A | 4SMF58A | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 |
| Manufacturer | HY Electronic (Cayman) Limited | HY Electronic (Cayman) Limited | WeEn Semiconductors | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SURFACE MOUNT UNI/BI-DIRECTIONAL | SURFACE MOUNT UNI/BI-DIRECTIONAL | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 |
| Series | HY Electronic (Cayman) Limited | HY Electronic (Cayman) Limited | WeEn Semiconductors | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
