5.0SMCJ26CA

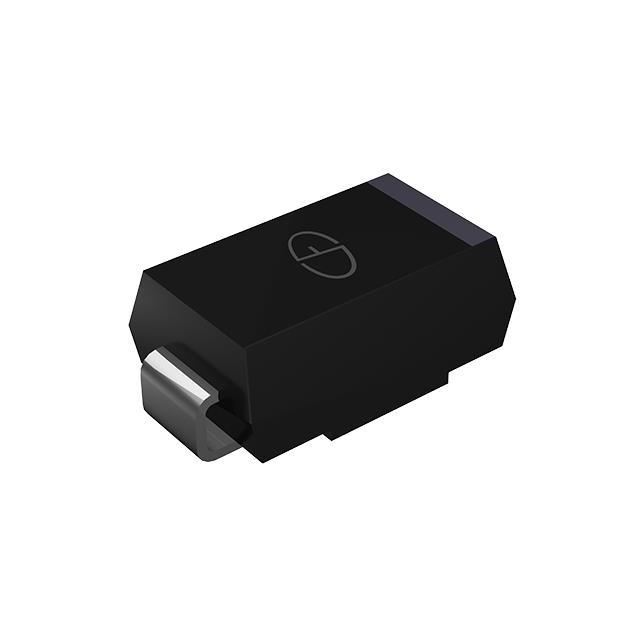

lmages are for reference only.5.0SMCJ26CA
TVS DIODE 26VWM 42.1VC DO-214AB
DatasheetDO-214AB, SMC
67,747 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
42.1V Clamp 118.8A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
5.0SMCJ26CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 118.8A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | 5.0SMCJ26CA | 5.0SMCJ26CA-AQ | 5.0SMCJ20A | 5.0SMCJ20A |
| Manufacturer | SMC Diode Solutions | Diotec Semiconductor | Good-Ark Semiconductor | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS SMC 26V 5000W BIDIR | TVS DIODE 26VWM 42.1VC DO-214AB | TVS, UNI-DIR, 5000W, 20V, DO-214 | 5000W, 20V, SMC, TRANSIENT VOLTA |
| Series | SMC Diode Solutions | Diotec Semiconductor | Good-Ark Semiconductor | SMC Diode Solutions |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
