Product CatalogPart Number
5.0SMLJ100CA
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE UP 100VRWM 162VC
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
19,949 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5.0SMLJ100CA
5.0SMLJ100CA

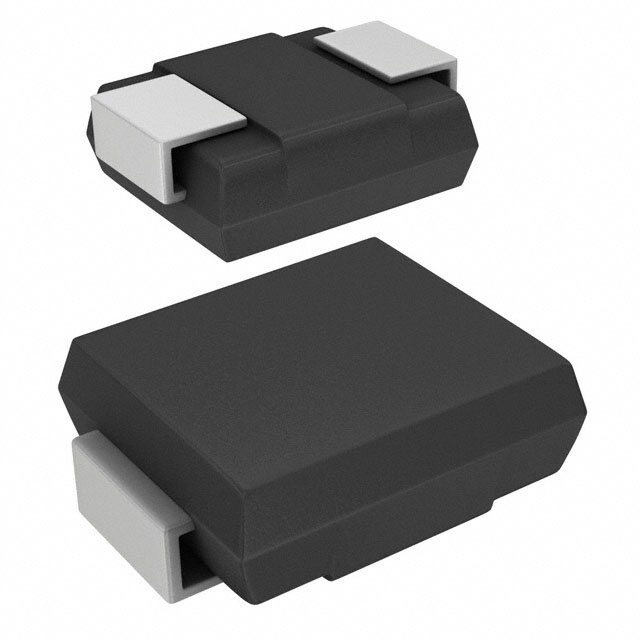

lmages are for reference only.Payment Methods
Delivery Services
162V Clamp 30.9A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Quick Inquiry
5.0SMLJ100CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | 5.0SMLJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 100V |
| Voltage - Breakdown (Min) | 111V |
| Voltage - Clamping (Max) @ Ipp | 162V |
| Current - Peak Pulse (10/1000µs) | 30.9A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | 5.0SMLJ100CA-TP | 5.0SMLJ100A | 5.0SMLJ100A-TP | 5.0SMLJ10A |
| Manufacturer | Micro Commercial Co | MDE Semiconductor Inc | Micro Commercial Co | MDE Semiconductor Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 100VWM 162VC DO214AB | TVS DIODE UP 100VRWM 162VC | TVS DIODE 100VWM 162VC DO214AB | TVS DIODE UP 10VRWM 17VC |
| Series | Micro Commercial Co | MDE Semiconductor Inc | Micro Commercial Co | MDE Semiconductor Inc |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
