5-1393808-3

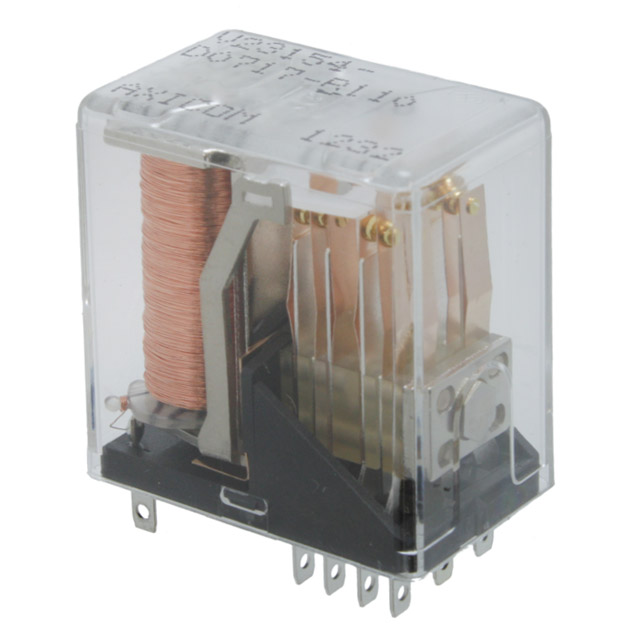

lmages are for reference only.5-1393808-3
RELAY GEN PURPOSE 4PDT 2A 12V
Datasheet-
80,151 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Socketable
5-1393808-3
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23154, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 150VDC - Max |
| Load - Max Switching | 250VA, 300W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 10.5 VDC |
| Must Release Voltage | - |
| Operate Time | 7.5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393808 |
| Coil Current | 54.5 mA |
| Coil Resistance | 220 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 5-1393808-0 | 5-1393808-1 | 5-1393808-6 | 5-1393808-7 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 6PST 2A 12V | RELAY GENERAL PURPOSE 2A 12V | RELAY GEN PURPOSE 4PDT 2A 15V | RELAY GEN PURPOSE 6PST 2A 15V |
| Series | V23154, AXICOM | V23154, AXICOM | V23154, AXICOM | V23154, AXICOM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
