5-1462037-0
lmages are for reference only.5-1462037-0
RELAY TELECOM DPDT 2A 1.5V
Datasheet-
53,196 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay DPDT (2 Form C) Through Hole
5-1462037-0
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 1.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 1.13 VDC |
| Must Release Voltage | - |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | 1462037 |
| Coil Current | 66.7 mA |
| Coil Resistance | 23 Ohms |
| Product Attribute |  |
 |
 |
 |

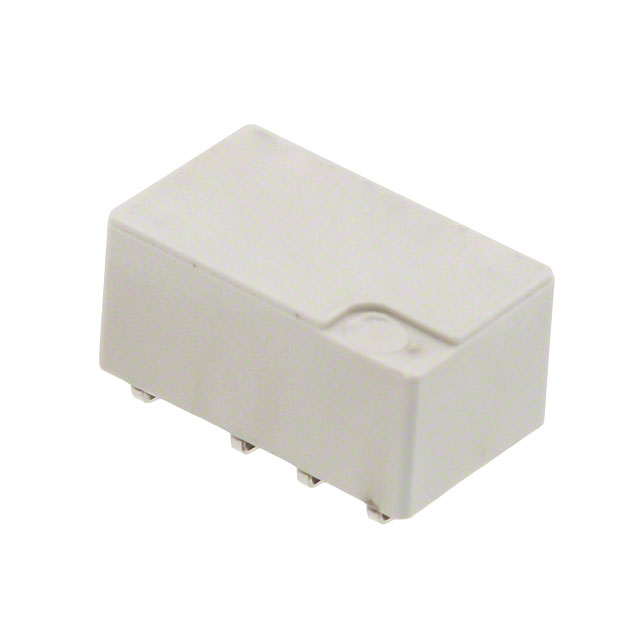

| Part Number | 5-1462037-1 | 5-1462037-2 | 5-1462037-3 | 5-1462037-4 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM DPDT 2A 1.5V | RELAY TELECOM DPDT 2A 1.5V | RELAY TELECOM DPDT 2A 3V | RELAY TELECOM DPDT 2A 3V |
| Series | IM, AXICOM | IM, AXICOM | IM, AXICOM | IM, AXICOM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
