5-1618006-3

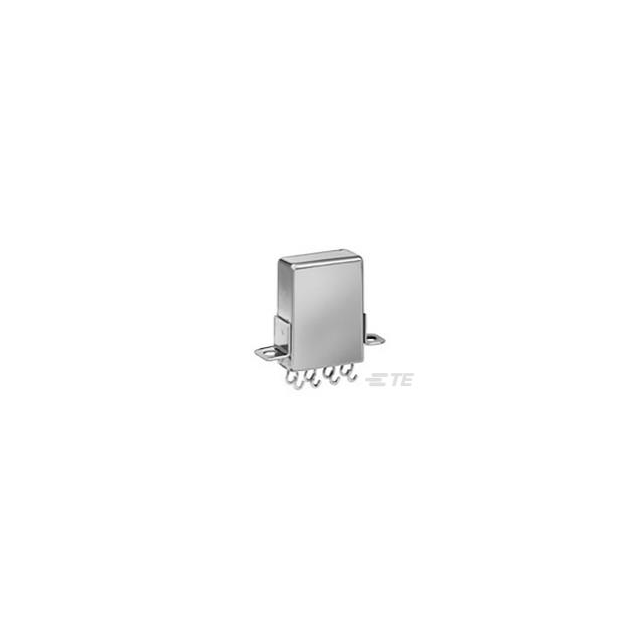

lmages are for reference only.5-1618006-3
AP10P332=RELAY, VACUUM, SPST,
Datasheet-
55,340 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 28VDC Coil Chassis Mount
5-1618006-3
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | AP10, KILOVAC |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 270VDC - Nom |
| Load - Max Switching | - |
| Coil Current | 350 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Vacuum |
| Coil Insulation | - |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | - |
| Operate Time | 4 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 80 Ohms |
| Base Product Number | 1618006 |
| Product Attribute | |
|
|
|
| Part Number | 5-1618006-4 | 5-1618007-0 | 5-1618007-1 | 5-1618007-2 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | AP10P532=RELAY, VACUUM, SPST, | AP5B232=RELAY, VACUUM, SPST-NC | AP5B234=RELAY, VACUUM, SPST-NC | AP5B235=RELAY, VACUUM, SPST-NC |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
