5-435166-3
lmages are for reference only.5-435166-3
SW ROCKER DIP SPST 0.025A 24V
Datasheet-
40,069 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 8 Position Through Hole Rocker Actuator 25mA 24VDC
5-435166-3
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | 7000 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Circuit | SPST |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Rocker |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.340" (8.64mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Sealed |
| Operating Temperature | -55°C ~ 105°C |
| Body Material | Polyester (PET), Glass Filled |
| Length | 0.880" (22.35mm) |
| Mechanical Life | 7,000 Cycles |
| Electrical Life | 7,000 Cycles |
| Base Product Number | 435166 |
| Product Attribute |  |
 |
|
 |
| Part Number | 5-435166-1 | 5-435470-2 | 5-435470-3 | 5-435470-5 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |

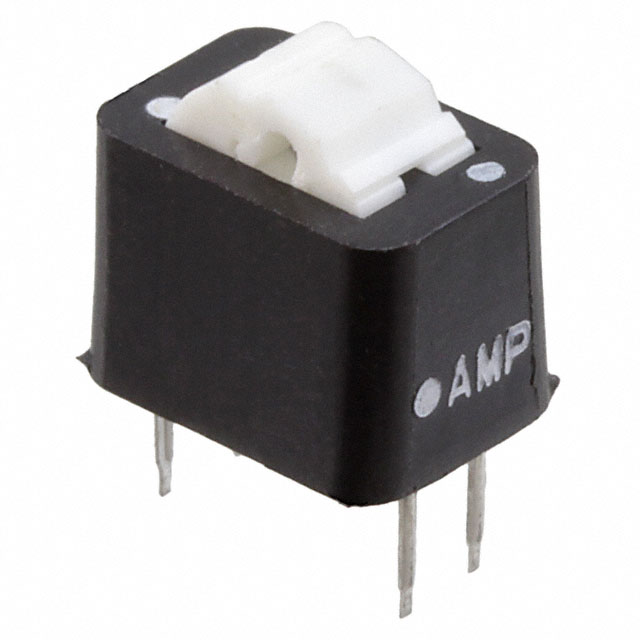

| Description | SWITCH ROCKER DIP SPST | SWITCH STANDARD DIP SPDT | SWITCH STANDARD DIP SPDT | SW ROCKER DIP DPDT 0.025A 24V |
| Series | 7000 | 7000 | 7000 | 7000 |
| Packaging | Bulk | Bulk | Bulk | Tube |
