Product CatalogPart Number
5025840374
Manufacturer
MolexDescription
1.5W/BSGLSTRECASSY3CKTBLUEMBSTPP
Datasheet
DatasheetPackage
-
In Stock
16,744 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5025840374
5025840374
lmages are for reference only.Payment Methods
Delivery Services
3 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
Quick Inquiry
5025840374
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Molex |
| Series | CLIK-Mate 502584 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Insulation Color | Blue |
| Insulation Height | 0.287" (7.30mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | - |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Insulation Material | Polyamide (PA), Nylon |
| Contact Shape | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Base Product Number | 502584 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | 5025840370 | 5025840371 | 5025840372 | 5025840376 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | |||
| Description | CONN RCPT 3POS 0.059 TIN SMD | 1.5 W/B SGLSTRECASSY3CKTBKEMBSTP | 1.5W/BSGLSTRECASSY3CKTREDEMBSTPP | 1.5W/BSGLSTRECASSY3CKTGRNEMBSTPP |
| Series | Molex | Molex | Molex | Molex |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
5025840260
Molex

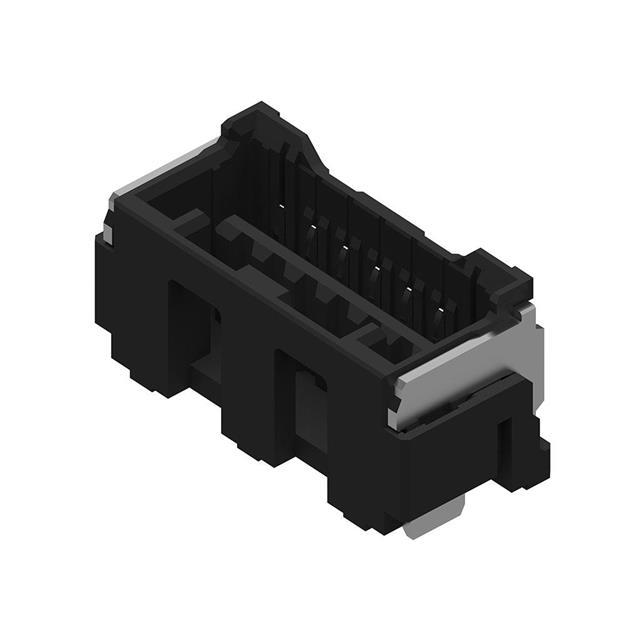

5025840261
