Product CatalogPart Number
5025841560
Manufacturer
MolexDescription
CONN RCPT 15POS 0.059 TIN SMD
Datasheet
DatasheetPackage
-
In Stock
12,832 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5025841560
5025841560
lmages are for reference only.Payment Methods
Delivery Services

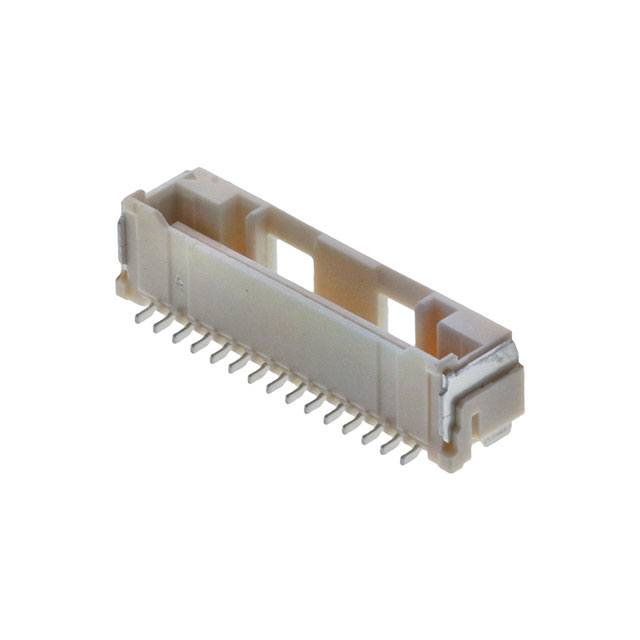

15 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
Quick Inquiry
5025841560
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Molex |
| Series | CLIK-Mate 502584 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Insulation Color | Beige |
| Insulation Height | 0.287" (7.30mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | - |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Insulation Material | Polyamide (PA), Nylon |
| Contact Shape | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Base Product Number | 502584 |
Parts with Similar Specifications
| Product Attribute |  | | | |
| Part Number | 5025841561 | 5025841562 | 5025841564 | 5025841566 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ||||
| Description | 1.5 W/B SGLSTASSY15CKTBLACKEMBST | 1.5 W/B SGL ST ASSY15CKTREDEMBST | 1.5 W/B SGL STASSY15CKTBLUEEMBST | 1.5 W/B SGLSTASSY15CKTGREENEMBST |
| Series | Molex | Molex | Molex | Molex |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
