503HC2102K2CM6

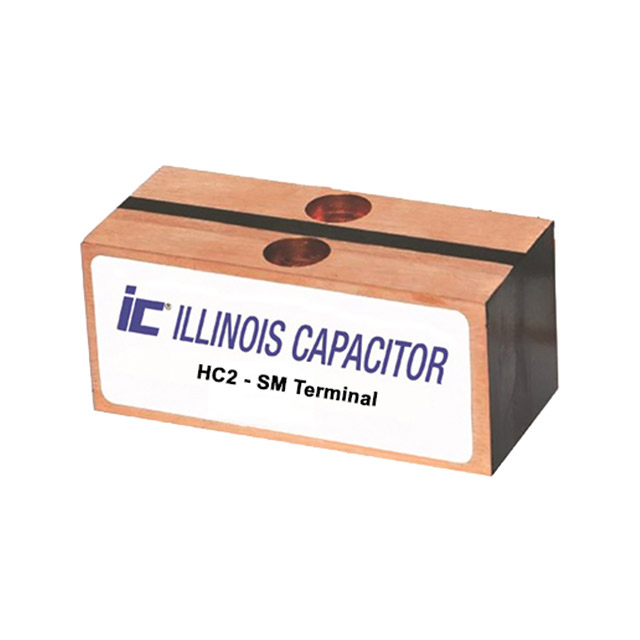

lmages are for reference only.503HC2102K2CM6
CAP FILM 0.05UF 1KVAC CHAS MT
DatasheetNonstandard
61,441 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.05 µF Film Capacitor 1000V (1kV) Polypropylene (PP) Nonstandard
503HC2102K2CM6
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | HC2 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.05 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.181" W (68.00mm x 30.00mm) |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 1.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 503HC1102K2CM6 | 503HC1102K2SM6 | 503HC2102K2SM6 | BFC233416274 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.05UF 1KVAC CHAS MT | CAP FILM 0.05UF 10% 1KVAC CHASS | CAP FILM 0.05UF 10% 1KVAC CHASS | CAP FILM 0.27UF 10% 400VDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
