50DAW_4803S1.5R

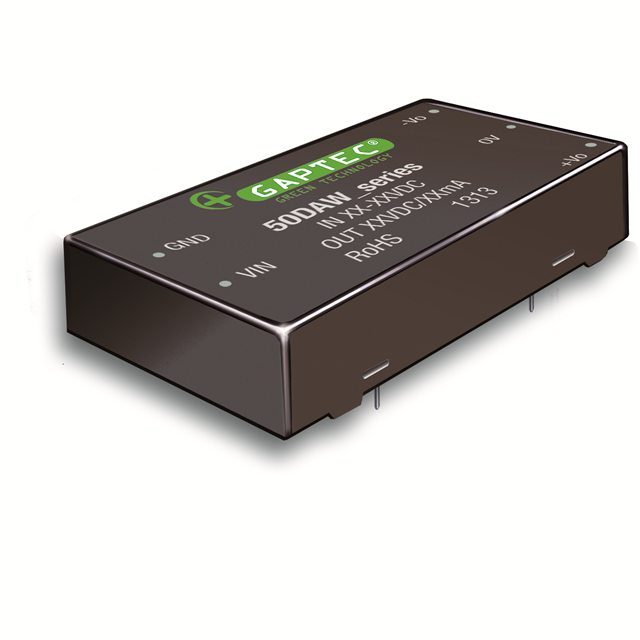

lmages are for reference only.50DAW_4803S1.5R
ISOLATED MODULE DC DC CONVERTERS
Datasheet6-DIP Module
96,551 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 10A 36V - 75V Input
50DAW_4803S1.5R
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 50DAW_1.5 (50W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 33 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | 50DAW_4805S1.5R | 50DAW_2403S1.5R | 50DAW_2405S1.5R | 50DAW_2412S1.5R |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Tube | Tube | Tube | Tube |
