Product CatalogPart Number
510-91-032-09-041003
Manufacturer
Mill-Max Manufacturing Corp.Description
SKT PGA SOLDRTL
Datasheet
DatasheetPackage
-
In Stock
96,283 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
510-91-032-09-041003
510-91-032-09-041003
lmages are for reference only.Payment Methods
Delivery Services
32 (9 x 9) Pos PGA Socket Gold Through Hole
Quick Inquiry
510-91-032-09-041003
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 510 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | PGA |
| Number of Positions or Pins (Grid) | 32 (9 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.125" (3.18mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3 A |
| Contact Resistance | 10mOhm |
| Base Product Number | 510-91 |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | 510-91-064-10-051003 | 510-91-068-10-041001 | 510-91-068-11-061001 | 510-91-085-11-041003 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SKT PGA SOLDRTL | SOCKET SOLDERTAIL 68-PGA | SOCKET SOLDERTAIL 68-PGA | SKT PGA SOLDRTL |
| Series | 510 | 510 | 510 | 510 |
| Packaging | Bulk | Tube | Tube | Bulk |
Customers Also Interested in
Recommended Products
510-91-064-10-051003
Mill-Max Manufacturing Corp.
510-91-068-10-041001
Mill-Max Manufacturing Corp.

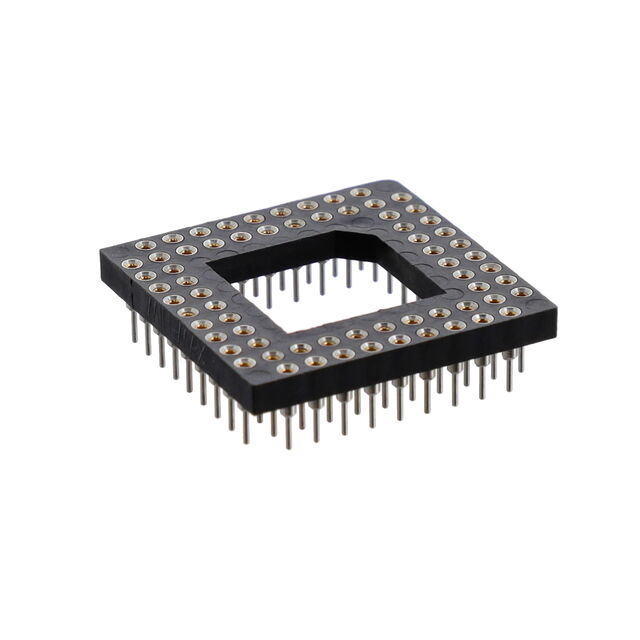

510-91-068-11-061001
Mill-Max Manufacturing Corp.
510-91-085-11-041003
Mill-Max Manufacturing Corp.
510-91-088-12-052002
Mill-Max Manufacturing Corp.
510-91-097-11-041003
Mill-Max Manufacturing Corp.
510-91-101-13-061002
Mill-Max Manufacturing Corp.

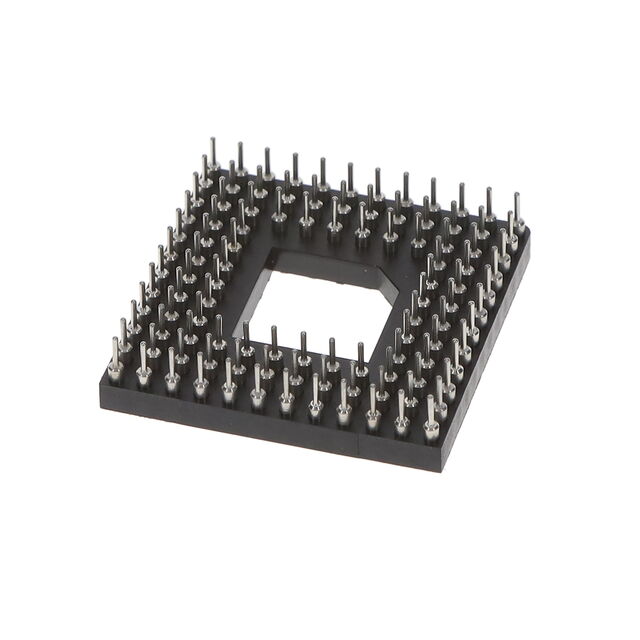

510-91-108-12-051001
Mill-Max Manufacturing Corp.
510-91-114-13-062001
Mill-Max Manufacturing Corp.
510-91-132-13-041001
Mill-Max Manufacturing Corp.
510-91-153-15-061001
Mill-Max Manufacturing Corp.
510-91-168-17-101002
Mill-Max Manufacturing Corp.

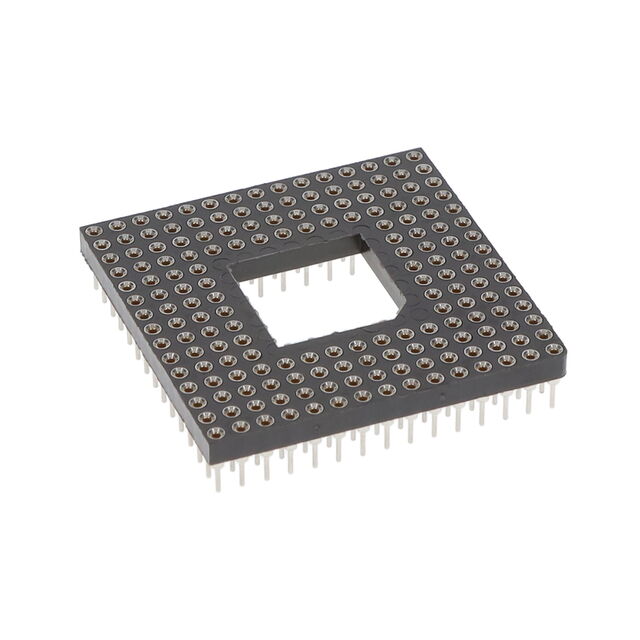

510-91-176-15-061002
