510CCA7M37280AAGR
lmages are for reference only.510CCA7M37280AAGR
XTAL OSC XO 7.3728MHZ CMOS SMD
Datasheet4-SMD, No Lead
90,080 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.3728 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
510CCA7M37280AAGR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si510 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 7.3728 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 26mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | 510CCA |
| Product Attribute |  |
 |
|
 |

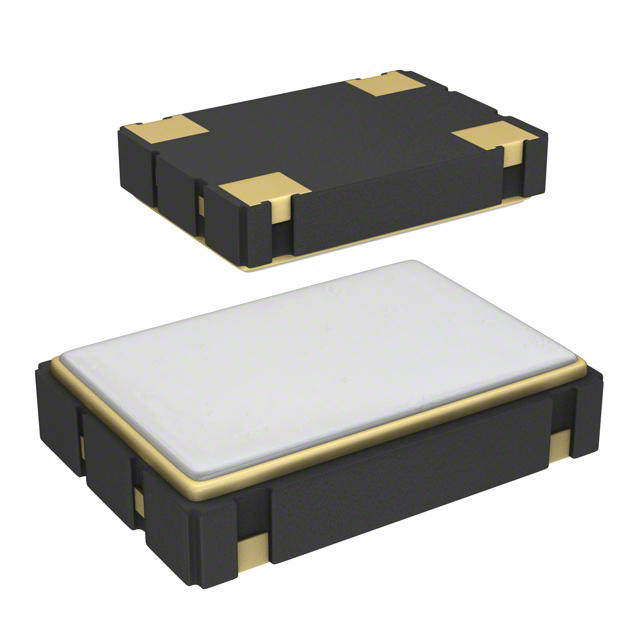

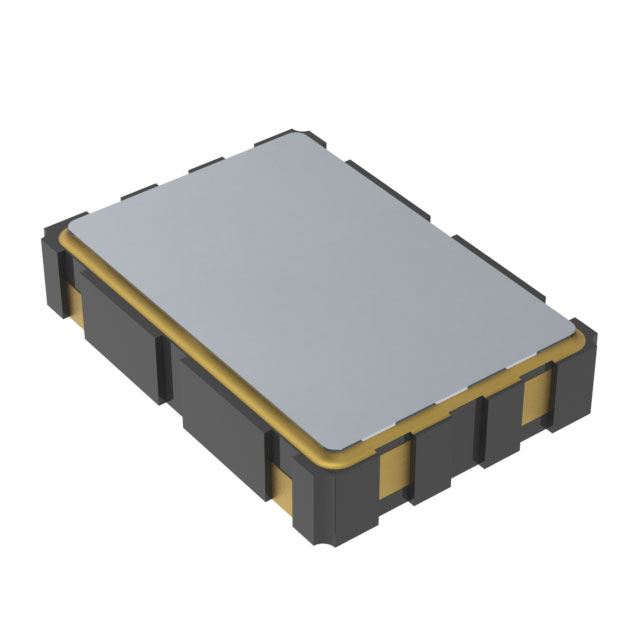

| Part Number | 510CCA7M37280AAG | 510CCA70M6560AAG | 510CCA70M6560AAGR | 510CCA70M6560BAG |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ||||
| Description | XTAL OSC XO 7.3728MHZ CMOS SMD | XTAL OSC XO 70.6560MHZ CMOS SMD | XTAL OSC XO 70.6560MHZ CMOS SMD | XTAL OSC XO 70.6560MHZ CMOS SMD |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip |
