Product CatalogPart Number
51530-00601-001
Manufacturer
Aces ConnectorsDescription
6PIN, 0.5MM PITCH EASY-ON FFC/FP
Datasheet
DatasheetPackage
-
In Stock
79,707 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
51530-00601-001
51530-00601-001
lmages are for reference only.Payment Methods
Delivery Services
6 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
51530-00601-001
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Aces Connectors |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.071" (1.80mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Features | Solder Retention |
| Voltage Rating | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Contact Finish Thickness | Flash |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

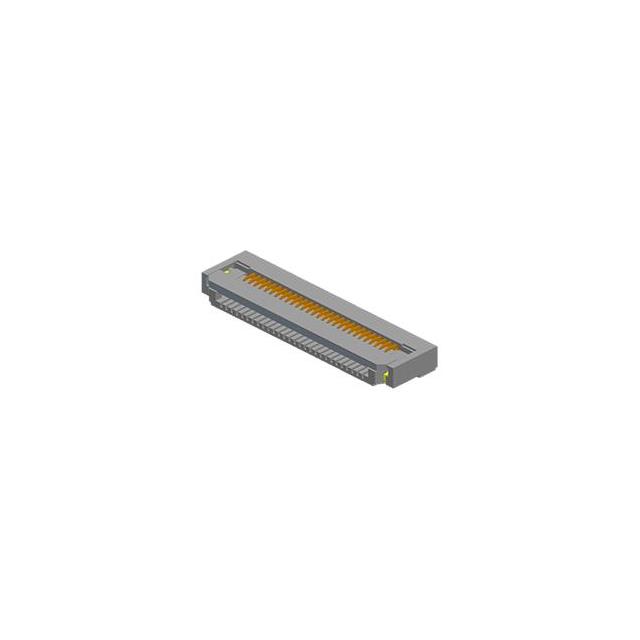

| Part Number | 51530-02001-001 | 51530-02601-001 | HFW8R-2STAHE1H1LF | SLW8S-1A7 |
| Manufacturer | Aces Connectors | Aces Connectors | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS non-compliant |
| Description | 20PIN, 0.5MM PITCH EASY-ON FFC/F | 26PIN, 0.5MM PITCH EASY-ON FFC/F | CONN FFC FPC TOP 8POS 1MM R/A | SLW8S-1A7-FFC/FPC CONN |
| Series | - | - | HFW-R | SLW-S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tray |
