5400BL15B0050001E
lmages are for reference only.5400BL15B0050001E
BALUN 4.9GHZ-5.9GHZ 50/50 0805
Datasheet0805 (2012 Metric)
68,191 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 4.9GHz ~ 5.9GHz 50 / 50Ohm 0805 (2012 Metric)
5400BL15B0050001E
| Category | RF and Wireless - Balun - |
| Manufacturer | Johanson Technology Inc. |
| Series | 5400 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 4.9GHz ~ 5.9GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 180° ±10° |
| Insertion Loss (Max) | 1.0dB |
| Return Loss (Min) | 9.5dB |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

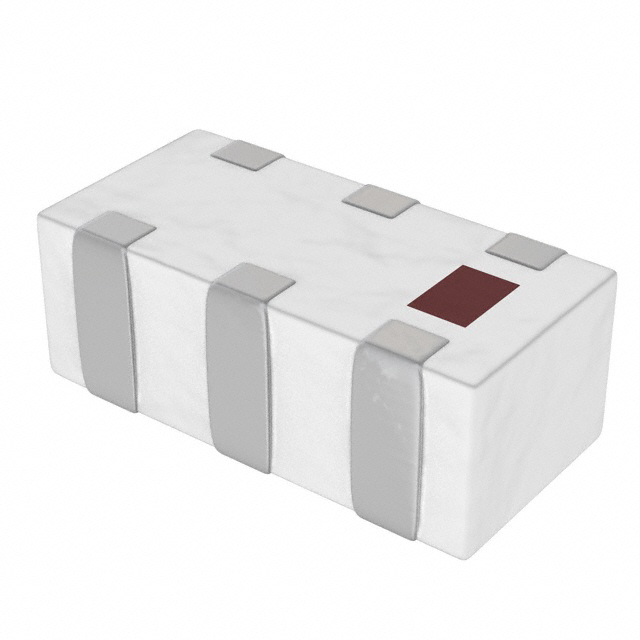

| Part Number | 5400BL14B0100001T | 5400BL15B0100001E | 5400BL15B0200001E | 5400BL15K0050001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

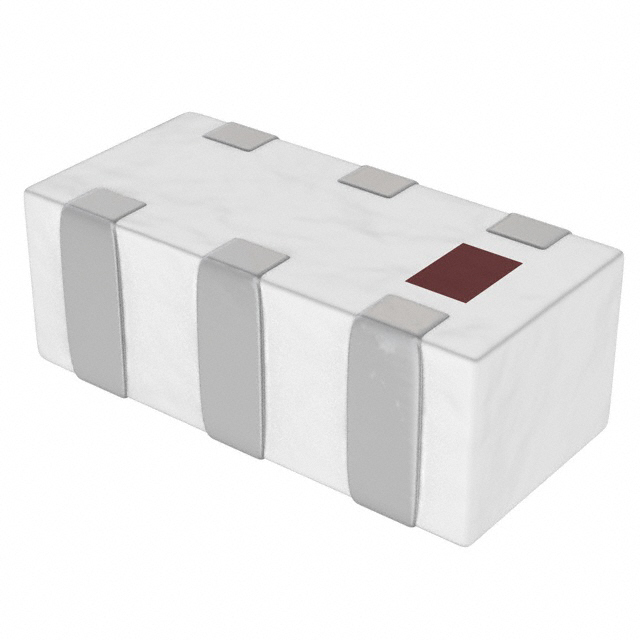

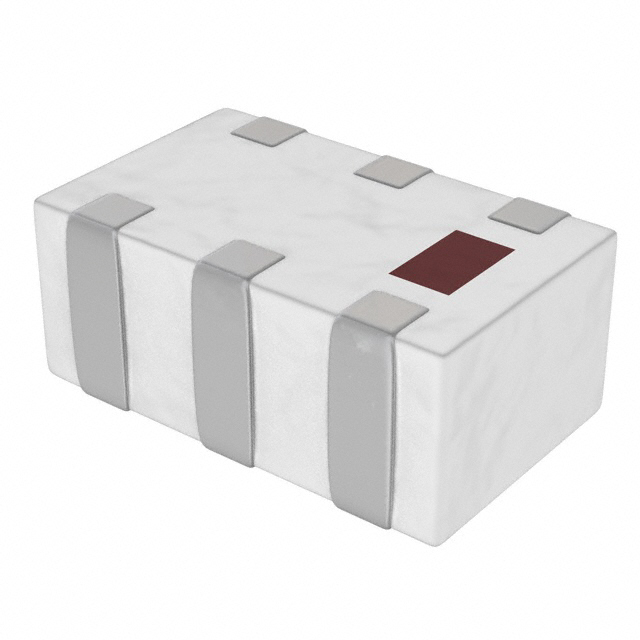

| Description | BALUN 4.9GHZ-5.87GHZ 50/100 0603 | BALUN 4.9GHZ-5.9GHZ 50/100 0805 | BALUN CERAMIC CHIP WIFI 5400MHZ | BALUN 4.9GHZ-5.87GHZ 50/50 0805 |
| Series | 5400 | 5400 | 5400 | 5400 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
