5435640-7

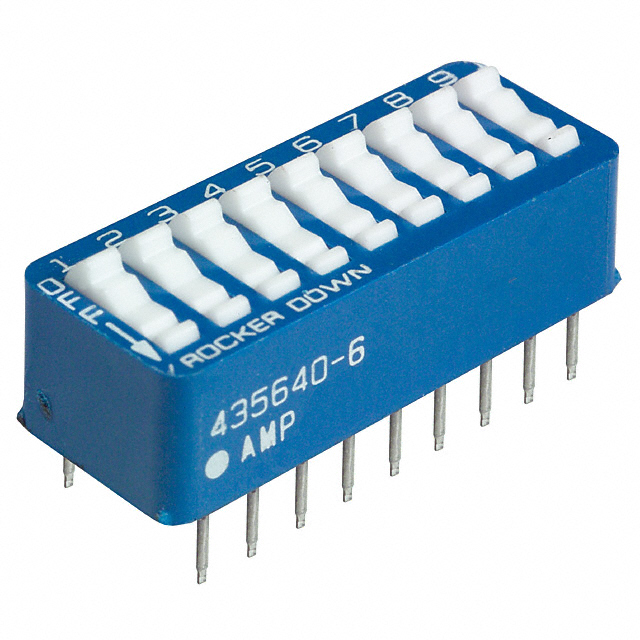

lmages are for reference only.5435640-7
SWITCH ROCKER DIP SPST 0.06A 5V
Datasheet-
72,239 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 10 Position Through Hole Rocker Actuator 60mA 5VDC
5435640-7
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | 7100 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 60mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rocker |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.340" (8.64mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Body Material | Polyester (PET), Glass Filled |
| Length | 1.080" (27.43mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | 5435640 |
| Product Attribute |  |
 |
 |
 |

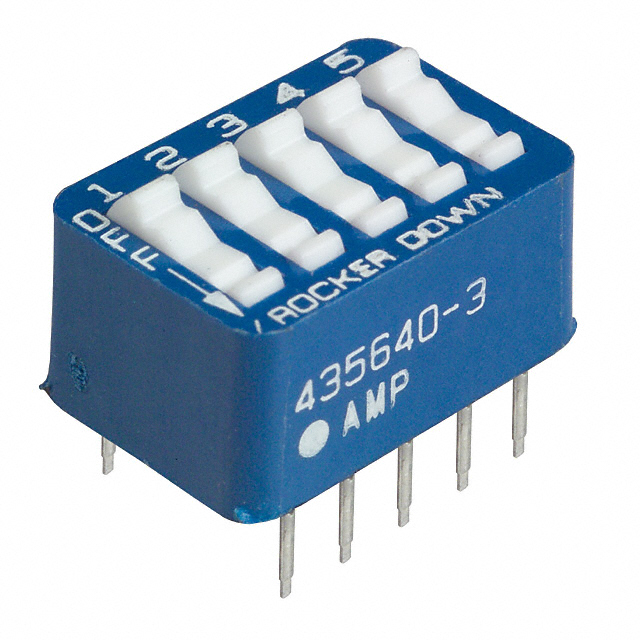

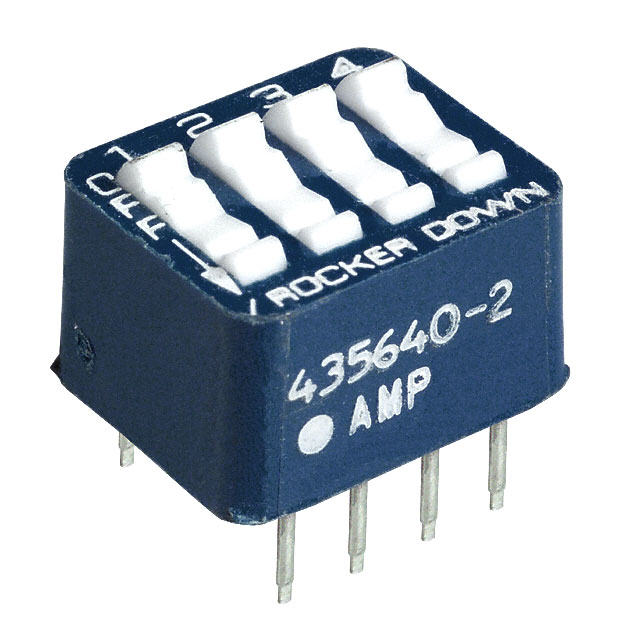

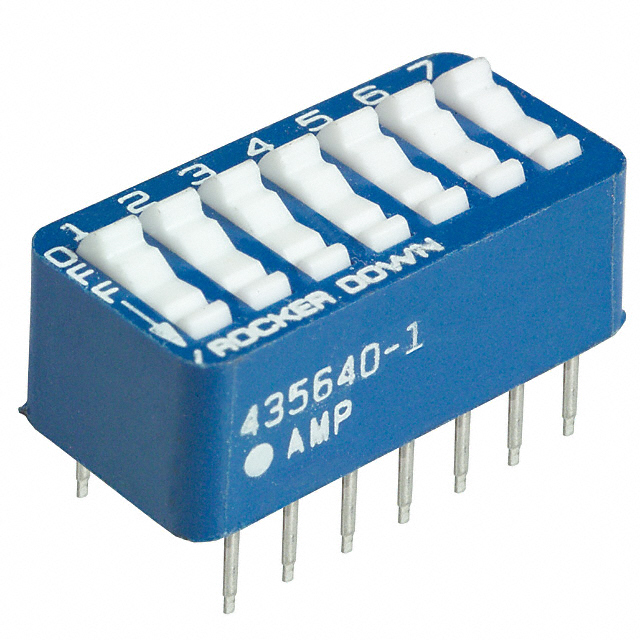

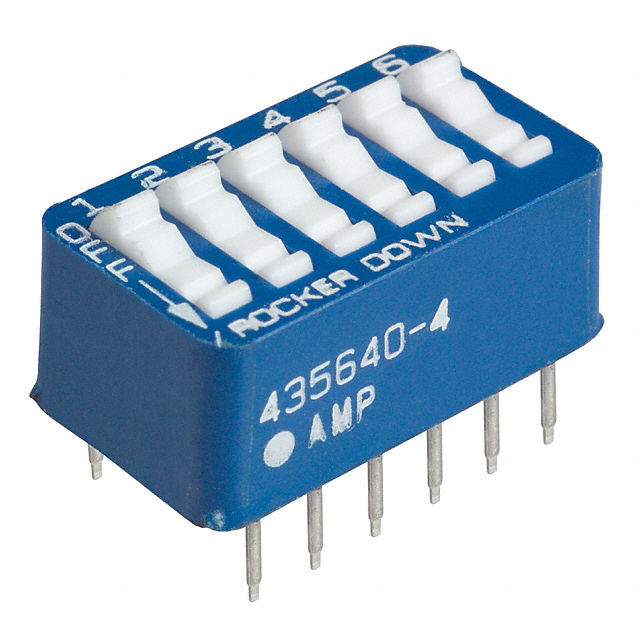

| Part Number | 5435640-1 | 5435640-2 | 5435640-3 | 5435640-4 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V |
| Series | 7100 | 7100 | 7100 | 7100 |
| Packaging | Tube | Tube | Tube | Tube |
