Product CatalogPart Number
5452562
Manufacturer
Phoenix ContactDescription
TERM BLOCK PLUG 15POS STR 5MM
Datasheet
DatasheetPackage
-
In Stock
24,455 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5452562
5452562
lmages are for reference only.Payment Methods
Delivery Services
15 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Quick Inquiry
5452562
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | BCP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Plug, Female Sockets |
| Number of Positions | 15 |
| Positions Per Level | 15 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Black |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M3 |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Wire Strip Length | 7mm |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 0.591" (15.00mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 5452560 | 5452561 | 5452563 | 5452564 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLOCK PLUG 13POS STR 5MM | TERM BLOCK PLUG 14POS STR 5MM | TERM BLOCK PLUG 16POS STR 5MM | TERM BLOCK PLUG 17POS STR 5MM |
| Series | BCP | BCP | BCP | BCP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
5452500
Phoenix Contact
5452501
Phoenix Contact
5452502
Phoenix Contact

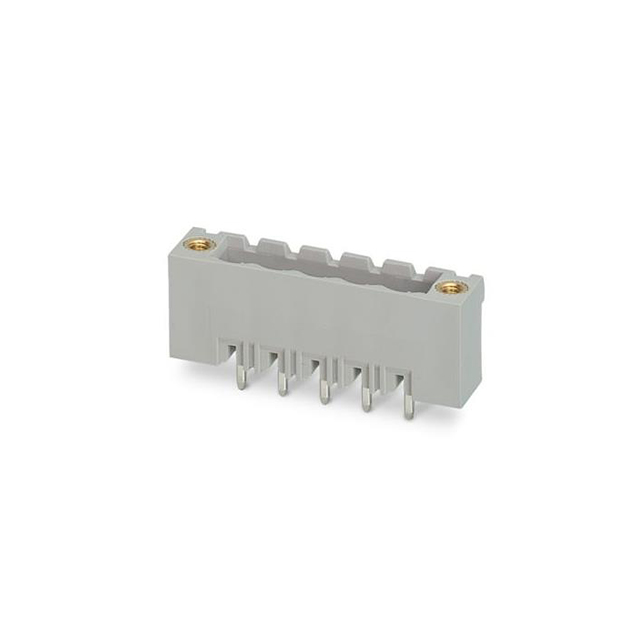

5452503
Phoenix Contact
5452504
Phoenix Contact
5452505
Phoenix Contact
5452506
Phoenix Contact
5452507
Phoenix Contact
5452508
Phoenix Contact
5452509
Phoenix Contact
5452510
Phoenix Contact
5452511
Phoenix Contact
5452512
Phoenix Contact
5452513
Phoenix Contact
5452514
Phoenix Contact

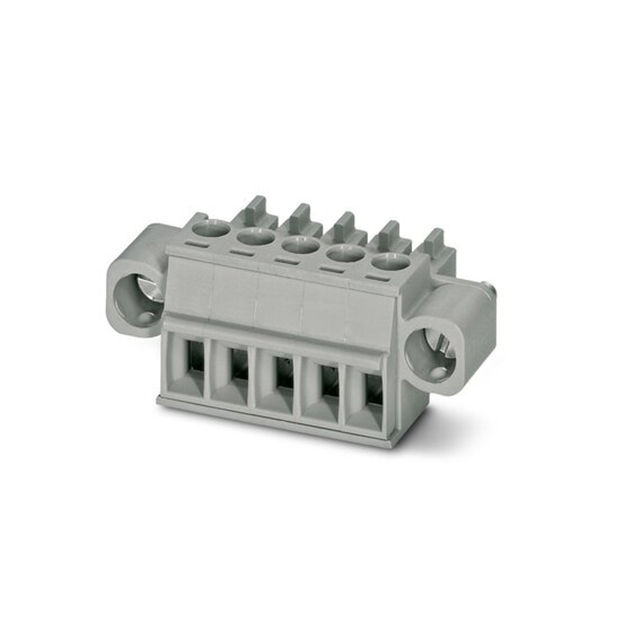

5452515
